XE-XF Ford Falcon EFI Ready Fuel Tank

$3,195.00
Sender OHM range
Fuel pump
Description

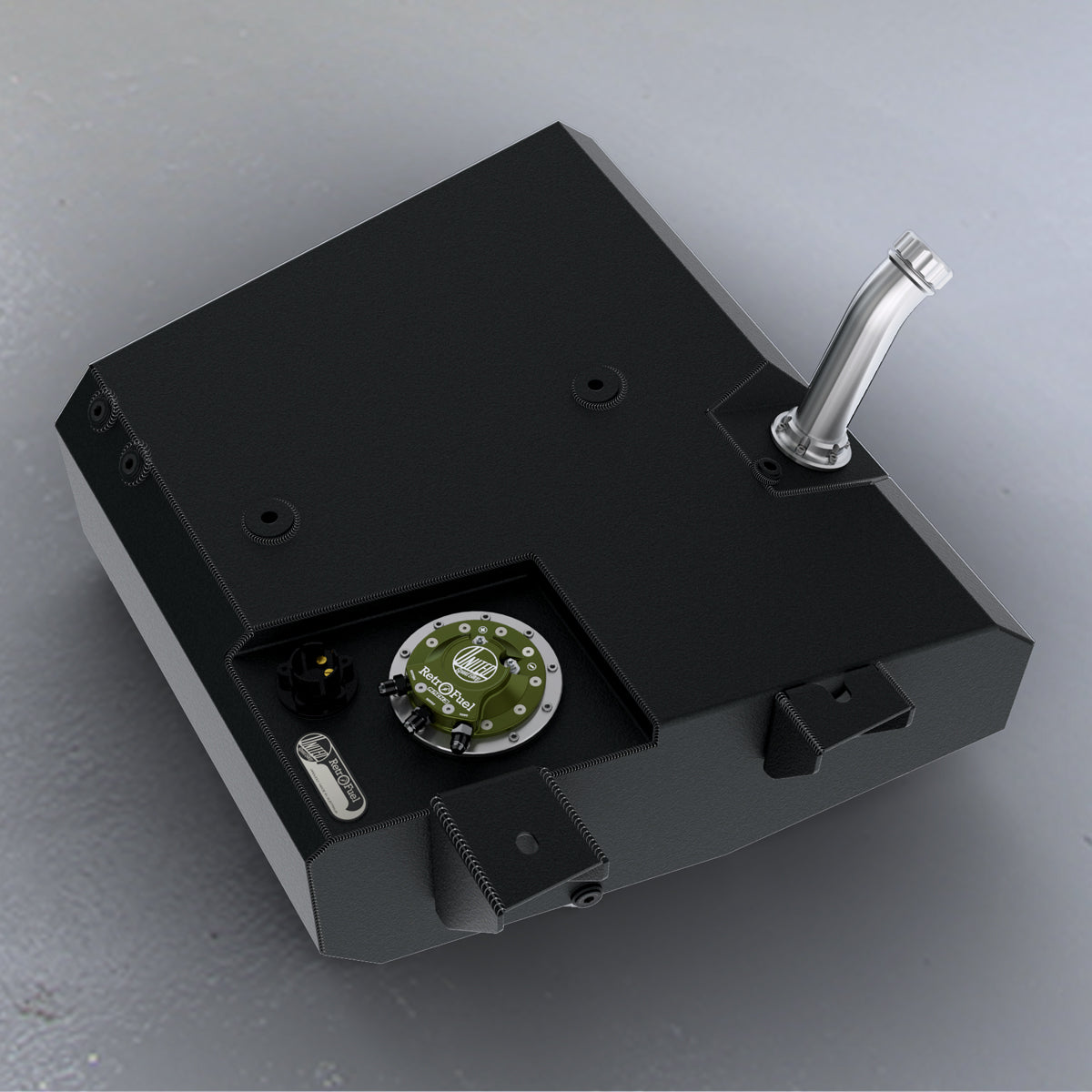

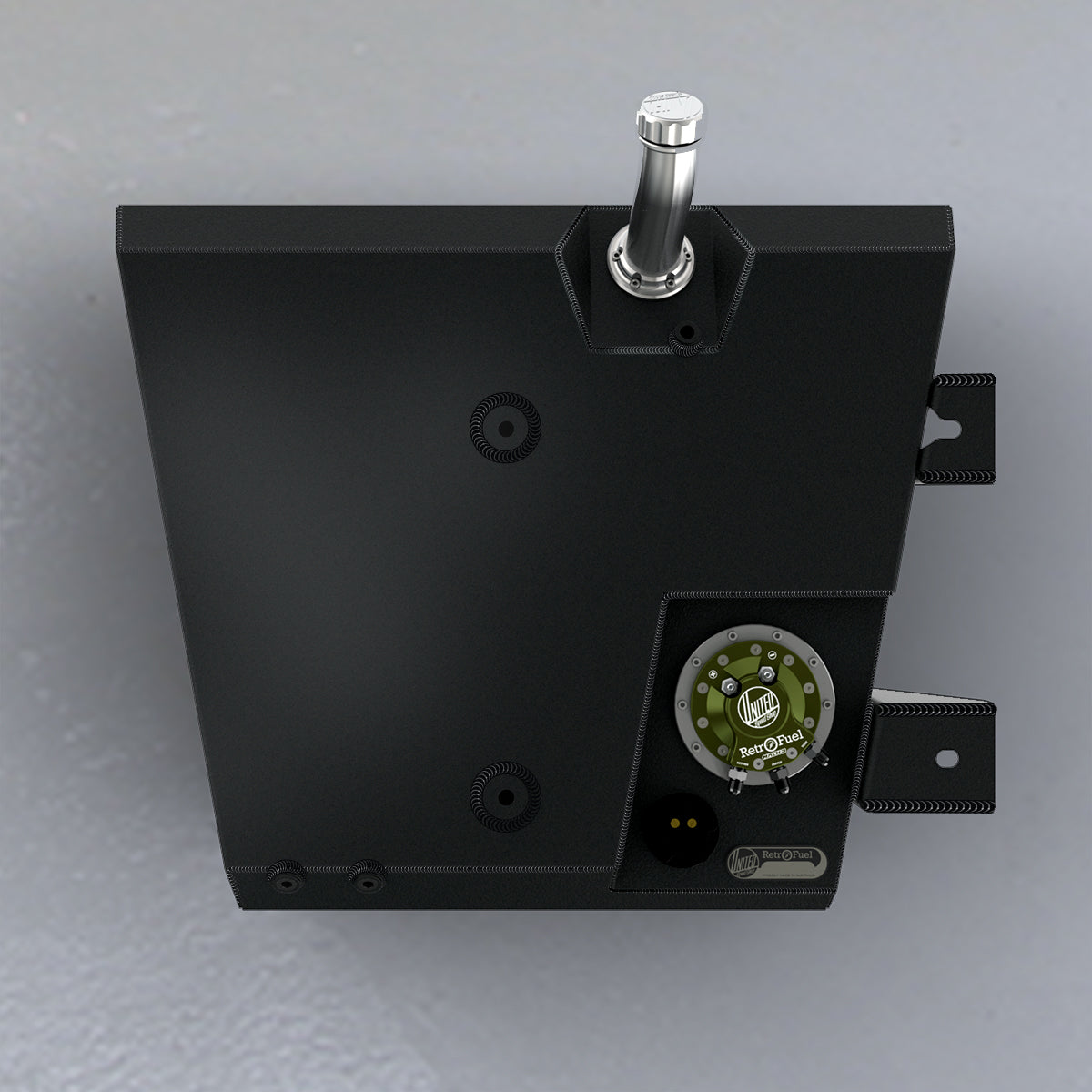

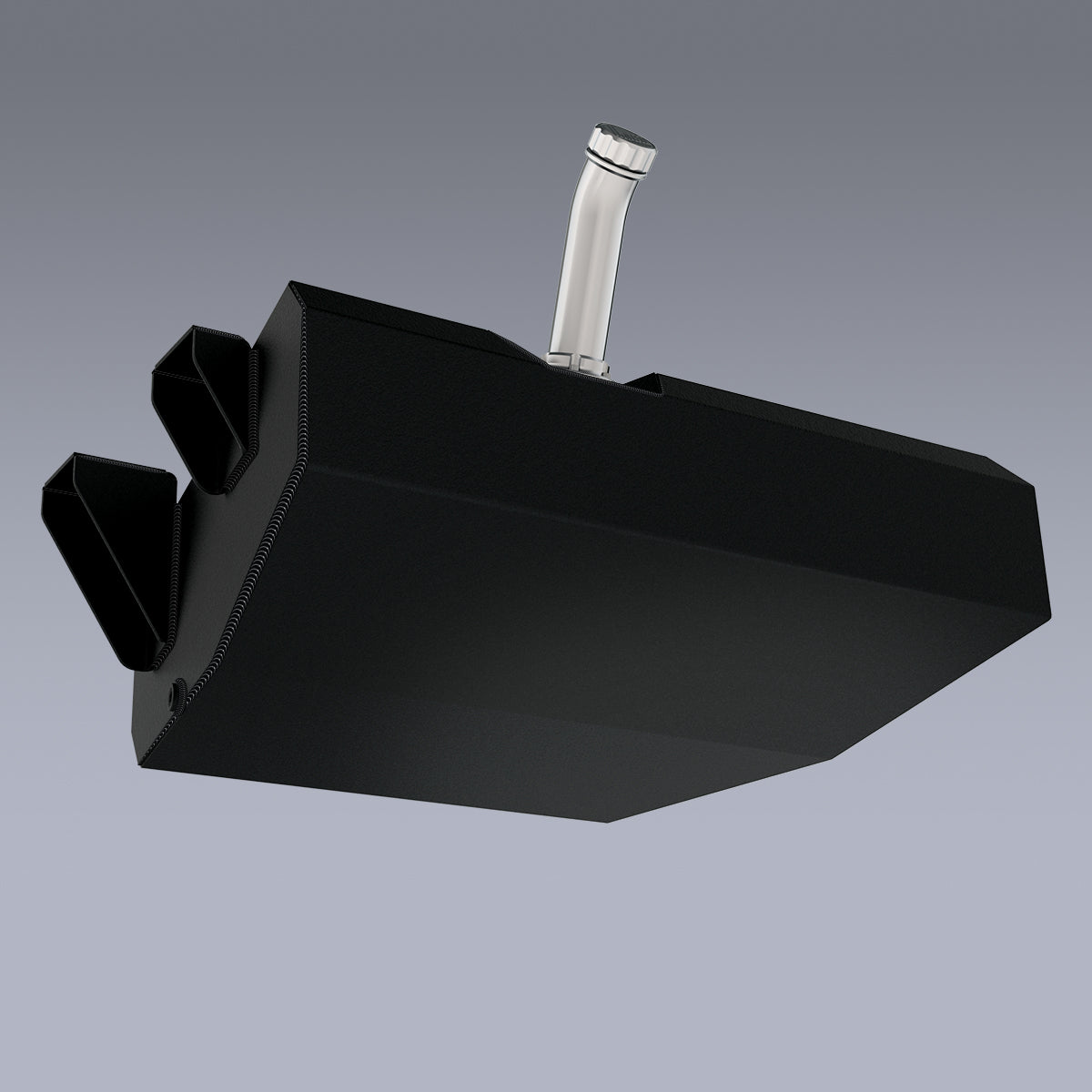

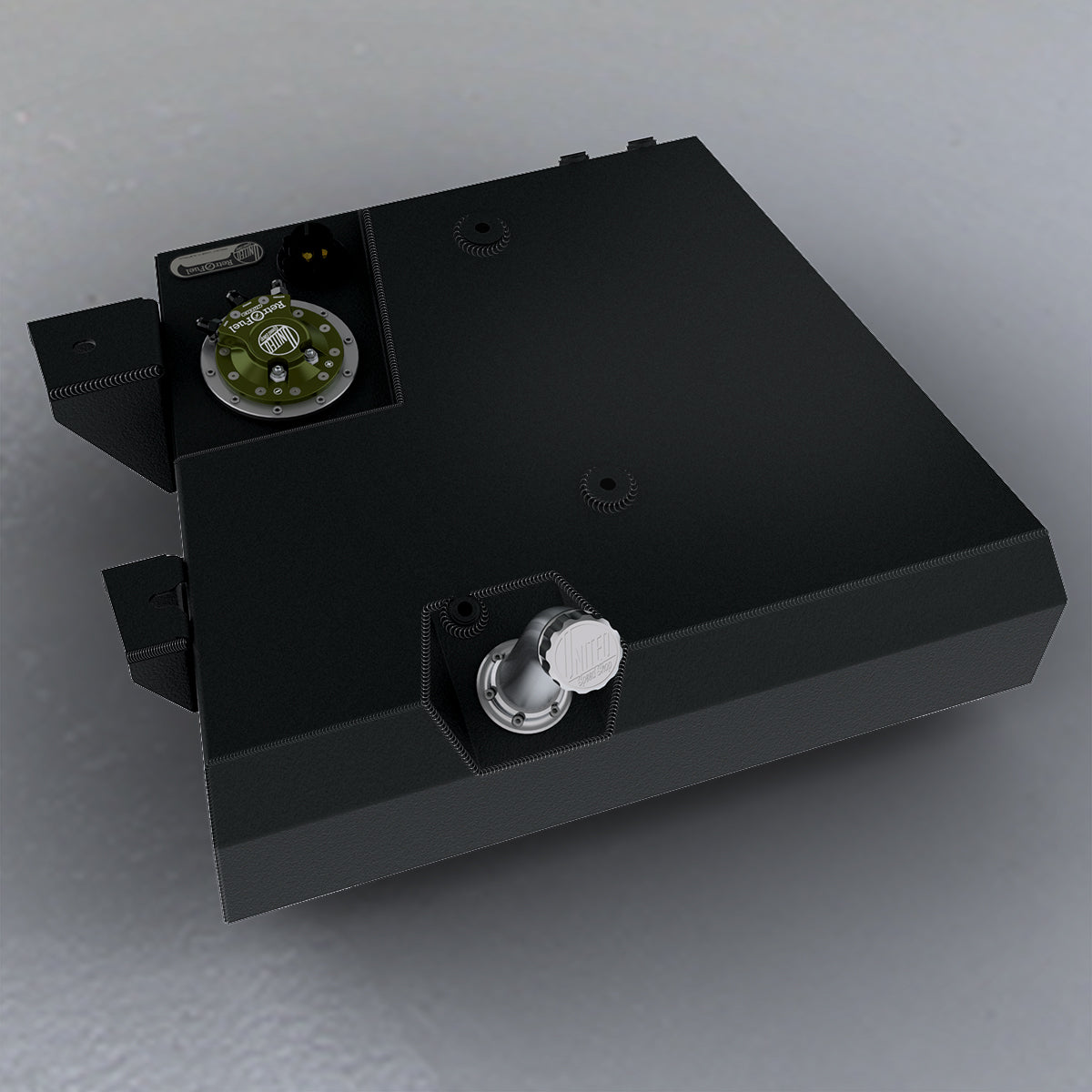

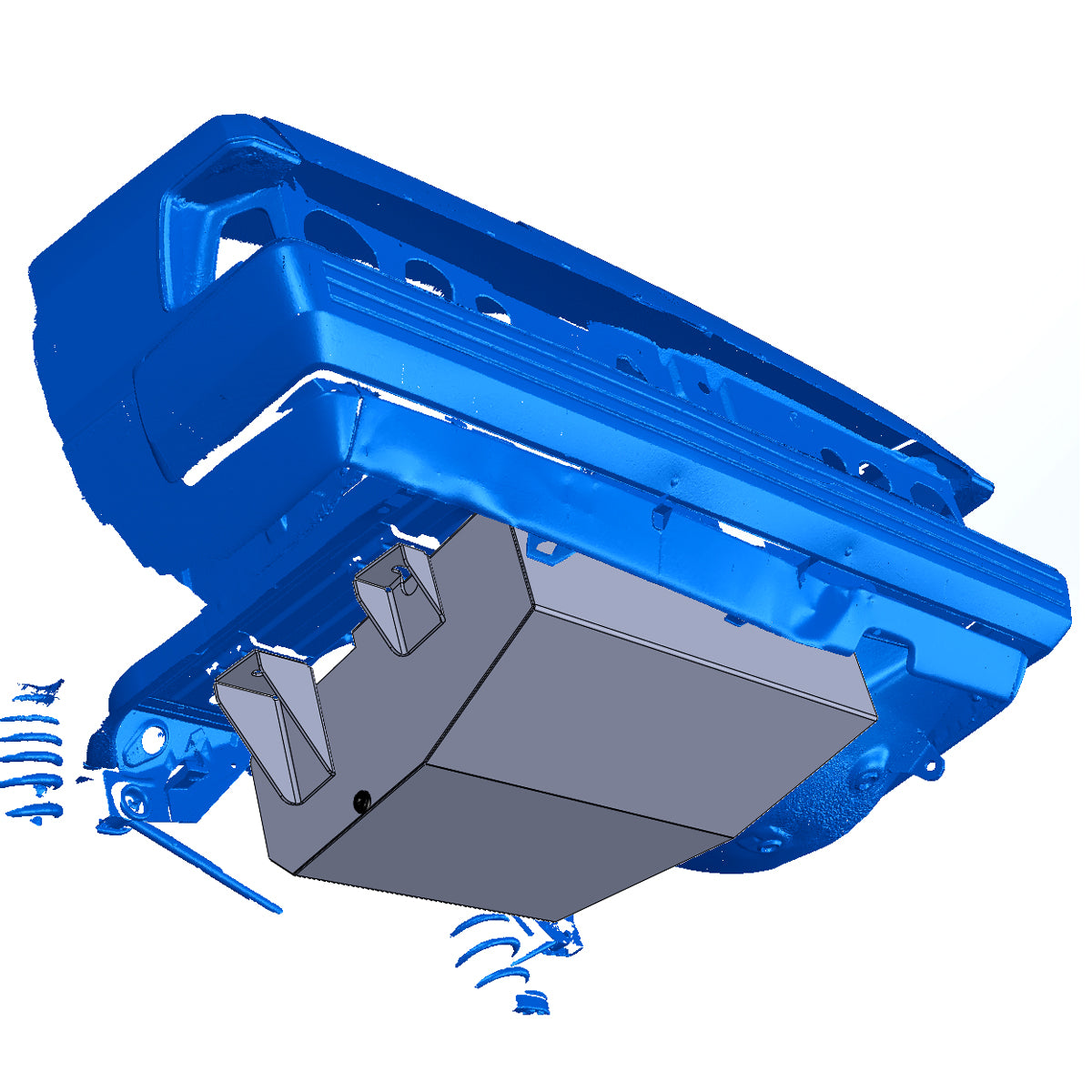

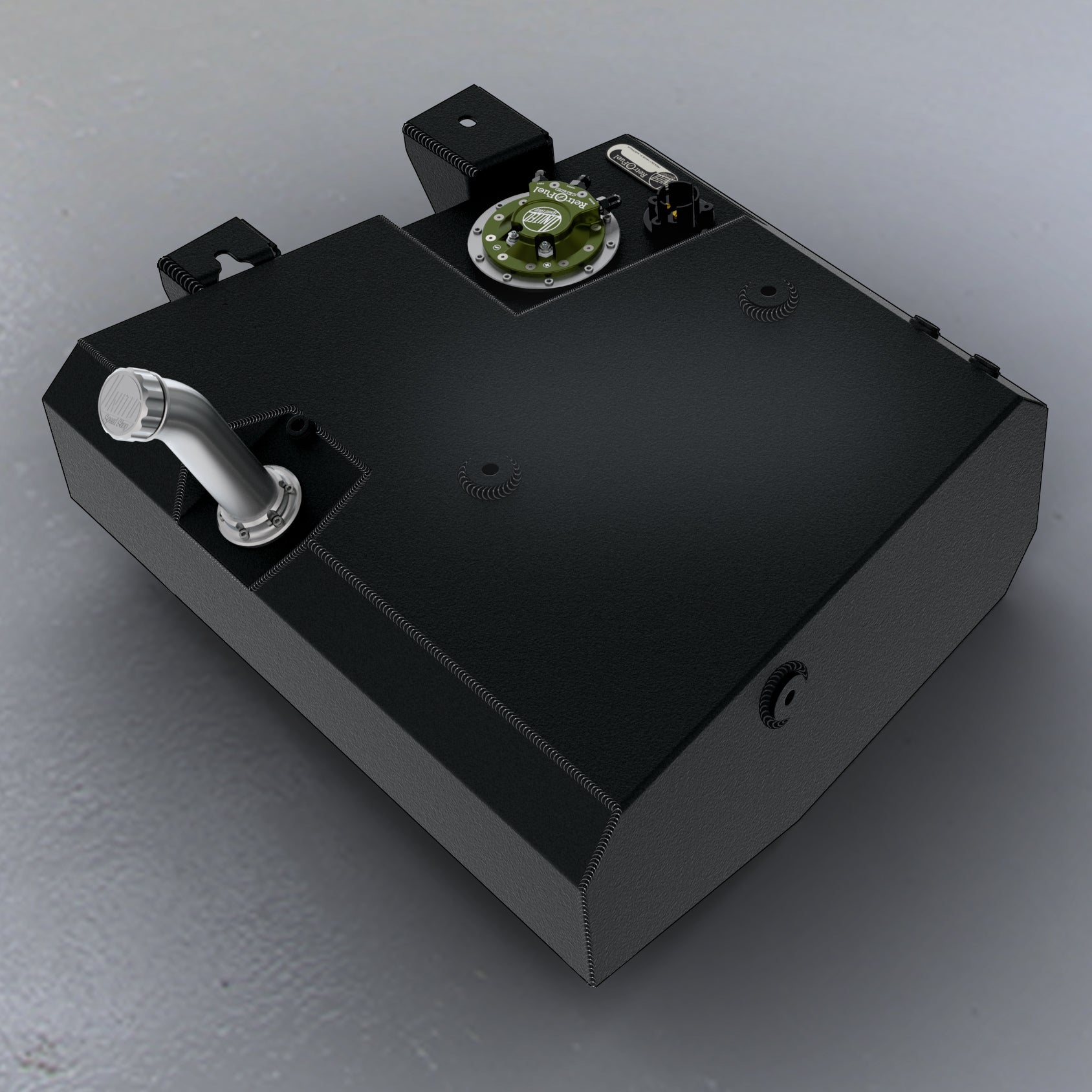

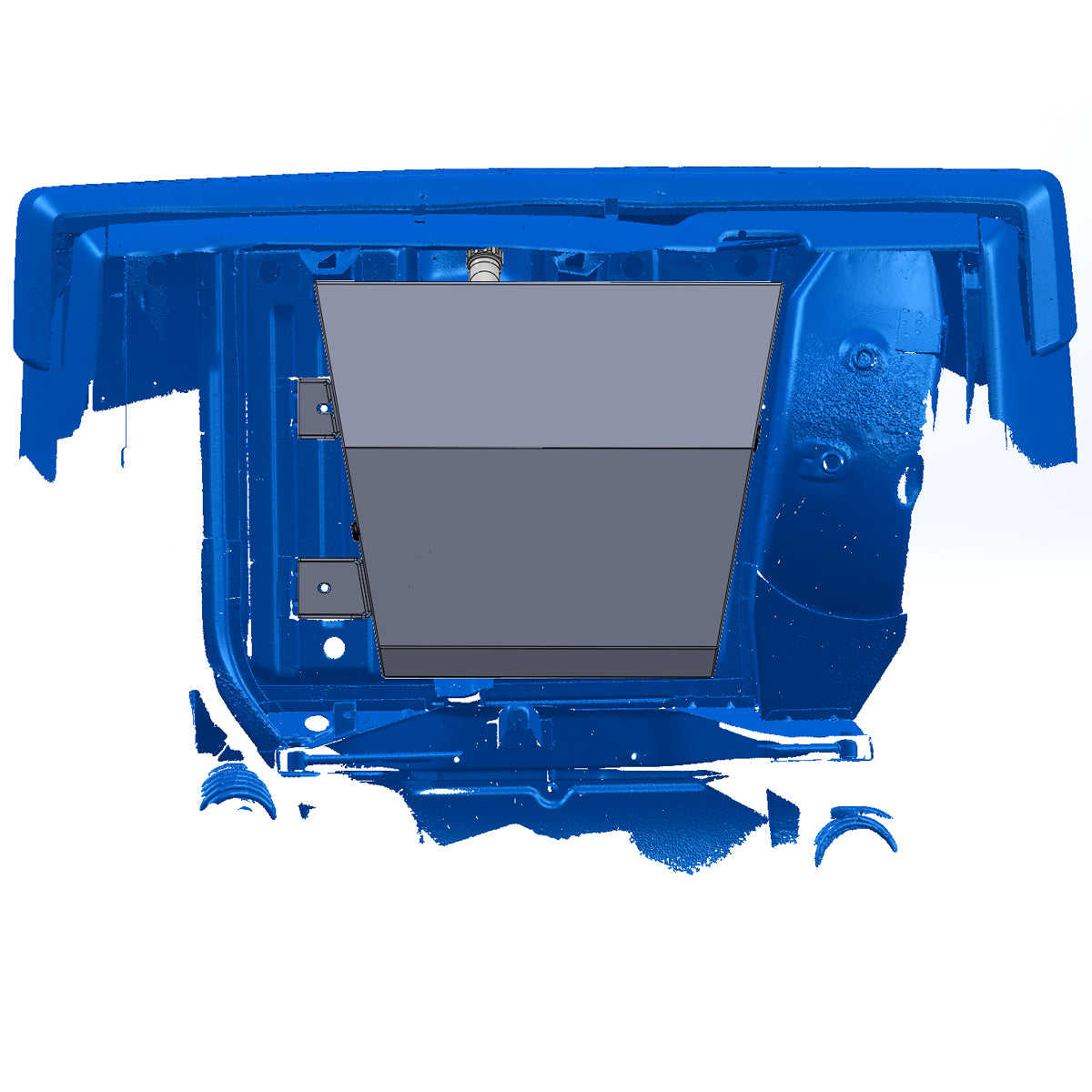

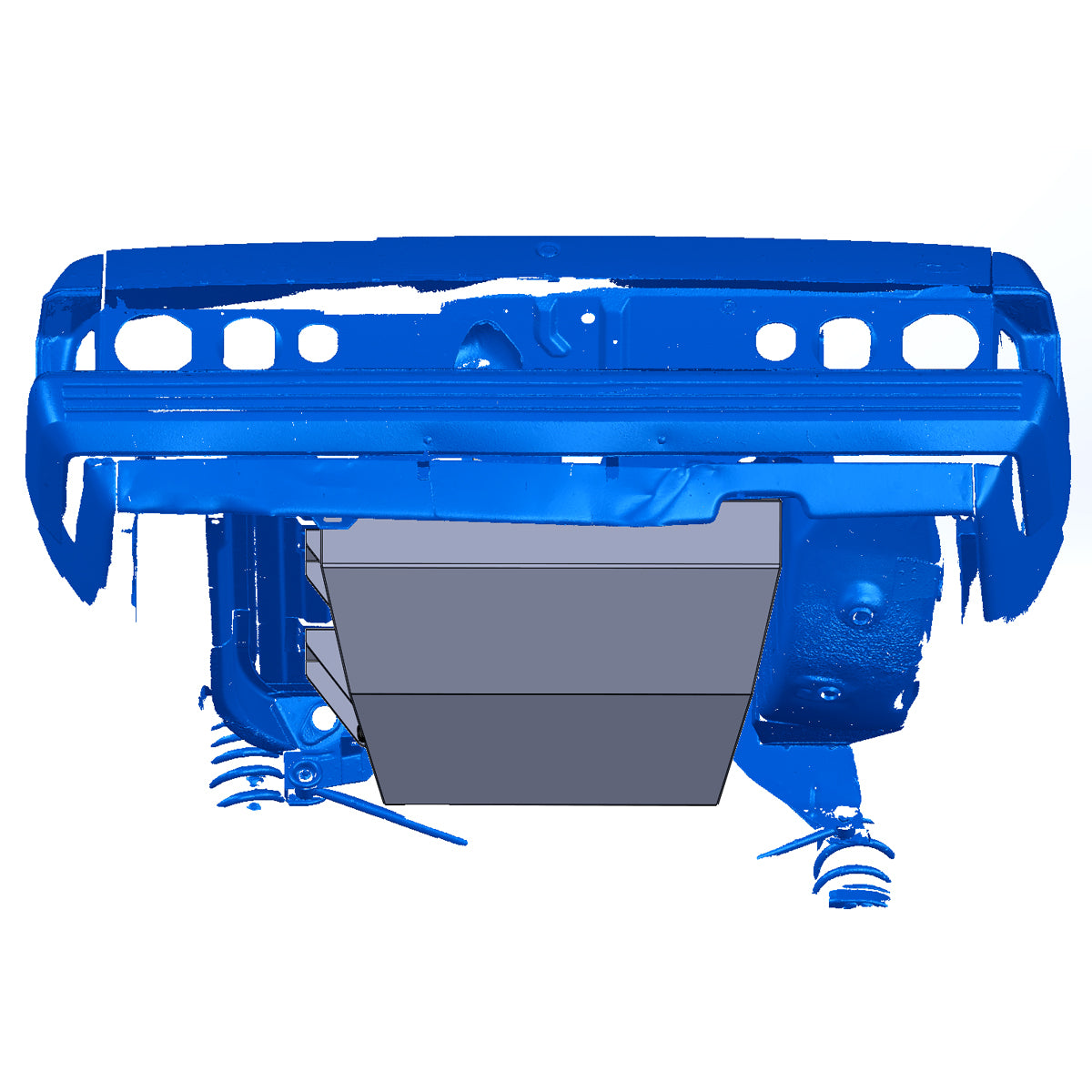

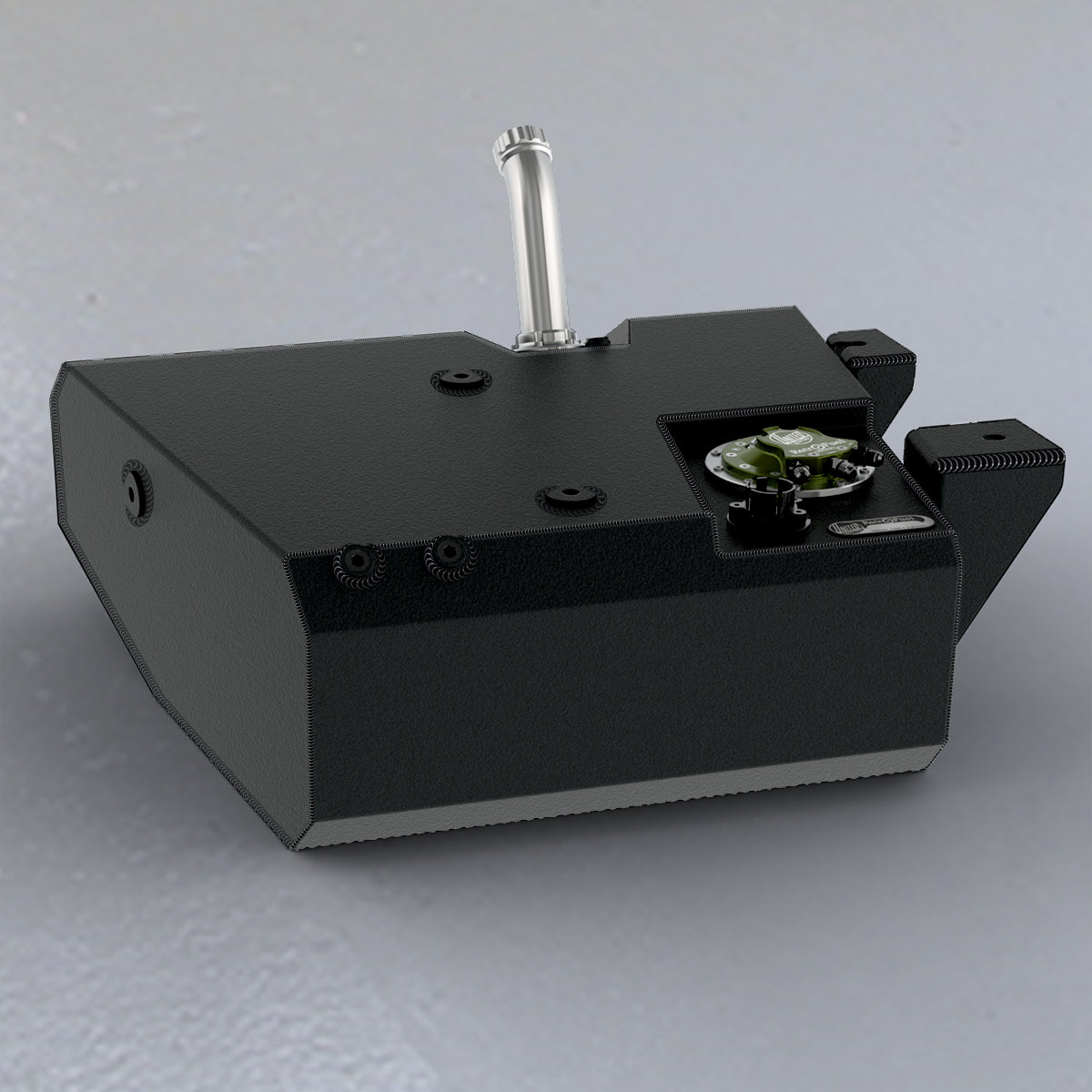

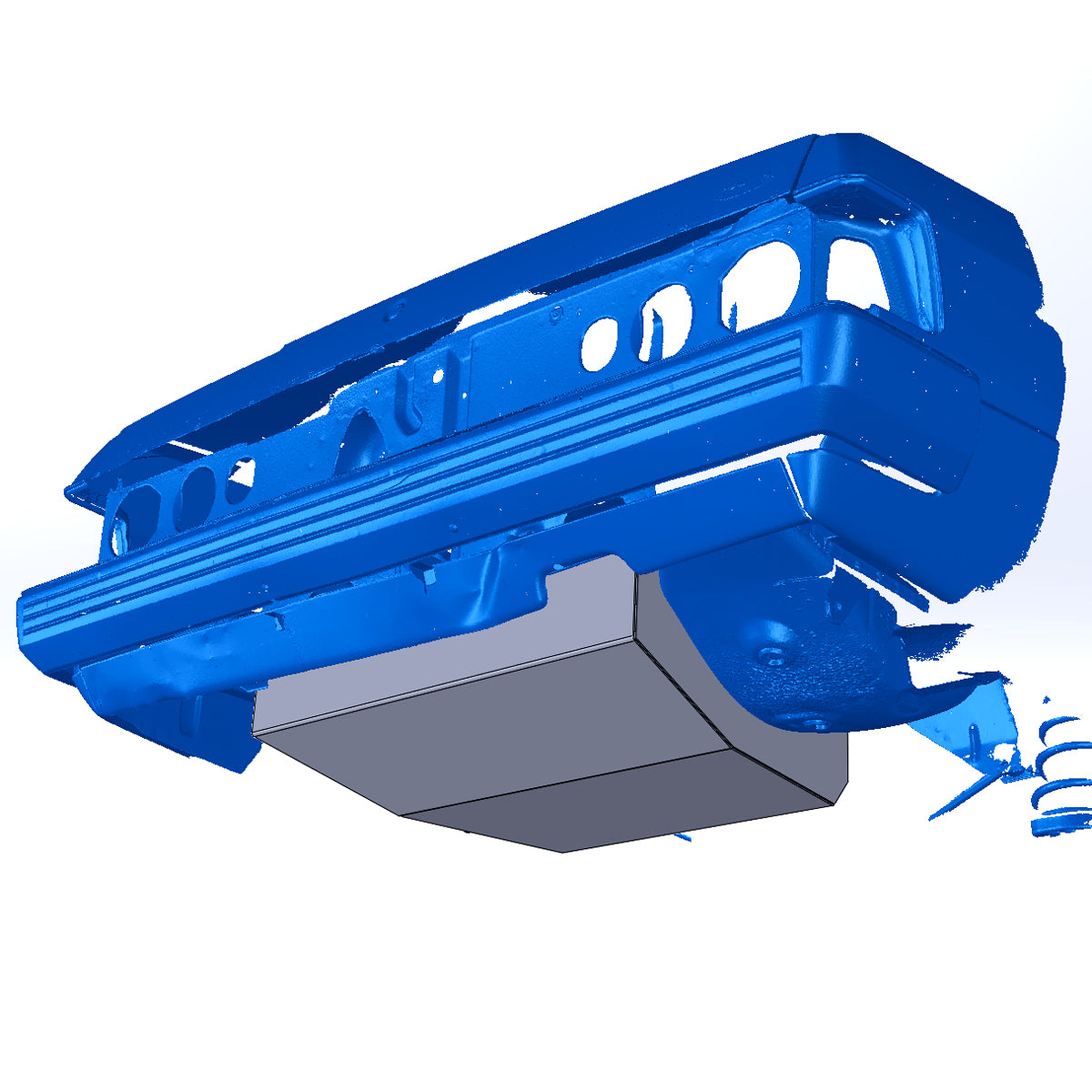

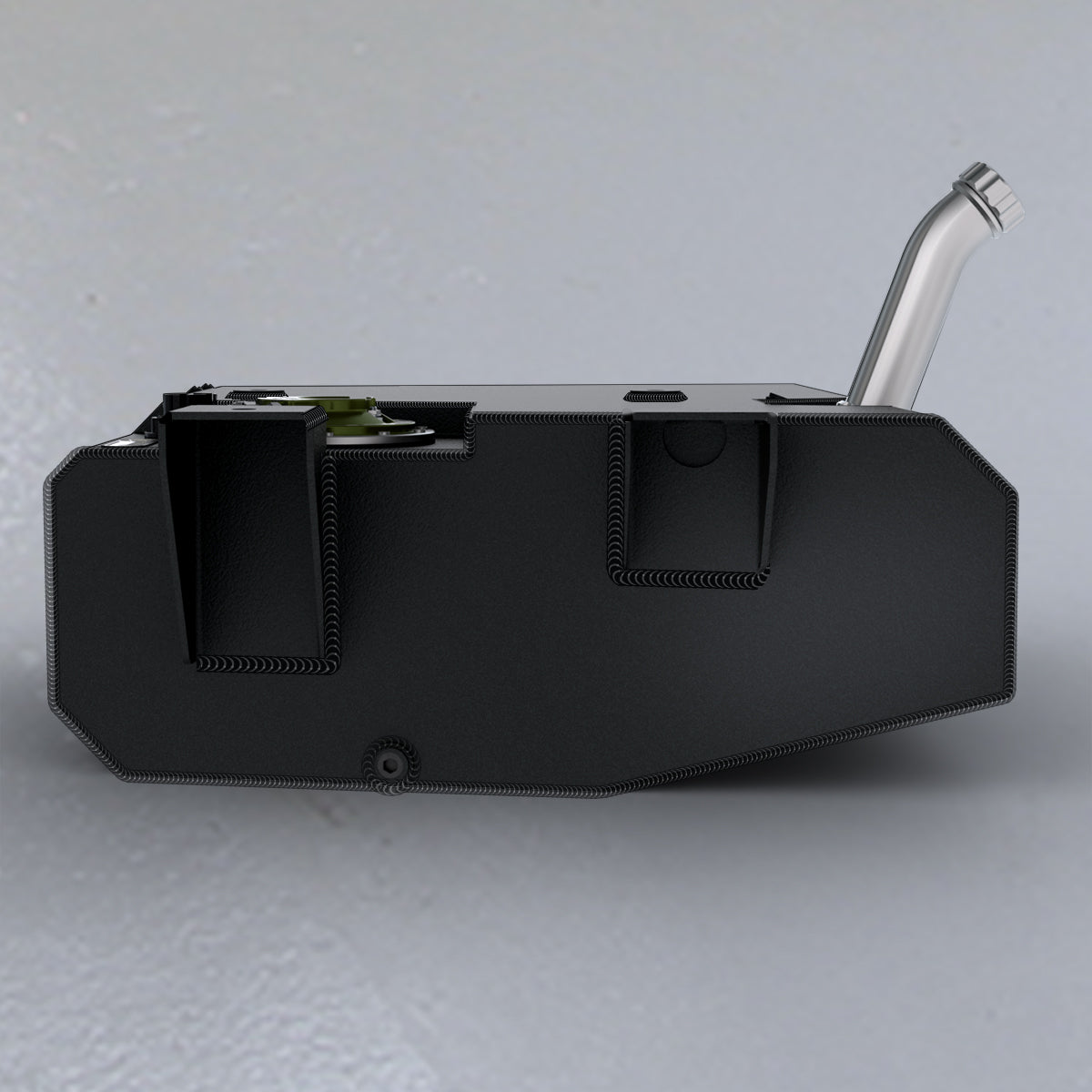

The latest Ford tank we offer is to suit the XE-XF Falcon. Designed to resemble a traditional drop tank style from the rear, they are a symmetrical design tank that will bolt directly to the floor of the vehicle (hardware included) and will clear the spare wheel well. There is no room between the tank and spare wheel well for exhaust routing so dual exhaust vehicles will need to either terminate shortly after the rear axle or have both routed to the passenger side of the vehicle to exit at the rear.

They are EFI ready and also will work for carburetted applications. These tanks have a 95L capacity, and the fuel pump can be accessed by the existing provision in the boot floor.

  • Internally baffled and sumped for fuel control
  • 3mm TIG welded aluminium construction
  • Direct bolt in fit
  • Suitable for EFI or carburetted applications
  • Designed to accept RetroFuel pumps plus others upon request
  • Complete with modern tube type sending unit (available in different ohm ranges)
  • Capacity: 95L
  • Billet fuel filler neck and cap supplied
  • Powder coated as standard
  • 1 x -8 ORB outlets (block off plugs supplied)
  • 2x -8 ORB intlets (block off plugs supplied)

Optional fuel pumps:

RetroFuel MACH 1 ($945)

  • Supports up to
    500 HP EFI – Naturally Aspirated

RetroFuel MACH 2 ($1045)

  • Supports up to
    650 HP EFI – Naturally Aspirated
    470 HP EFI – Forced Induction

RetroFuel MACH 3 ($1245)

  • Supports up to
    1100 HP EFI – Naturally Aspirated
    800 HP EFI – Forced Induction
    750 HP EFI – Naturally Aspirated (E85)
    550 HP EFI – Forced Induction (E85)

RetroFuel MACH 6 ($1545)

  • Supports up to
    2200 HP EFI – Naturally Aspirated
    1600 HP EFI – Forced Induction
    1500 HP EFI – Naturally Aspirated (E85)
    1100 HP EFI – Forced Induction (E85)

These pumps are also suitable for carburetted applications with the use of a return style regulator - see our fuel pump comparison chart here for supported power levels.

Custom colour powder coating is available on request.

We can still supply and fit Aeromotive or other types of pumps on request – contact us.

All tanks are currently made to order so please allow approx. 6 weeks for delivery.
