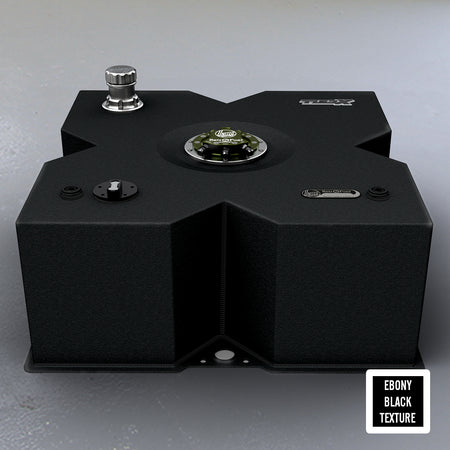

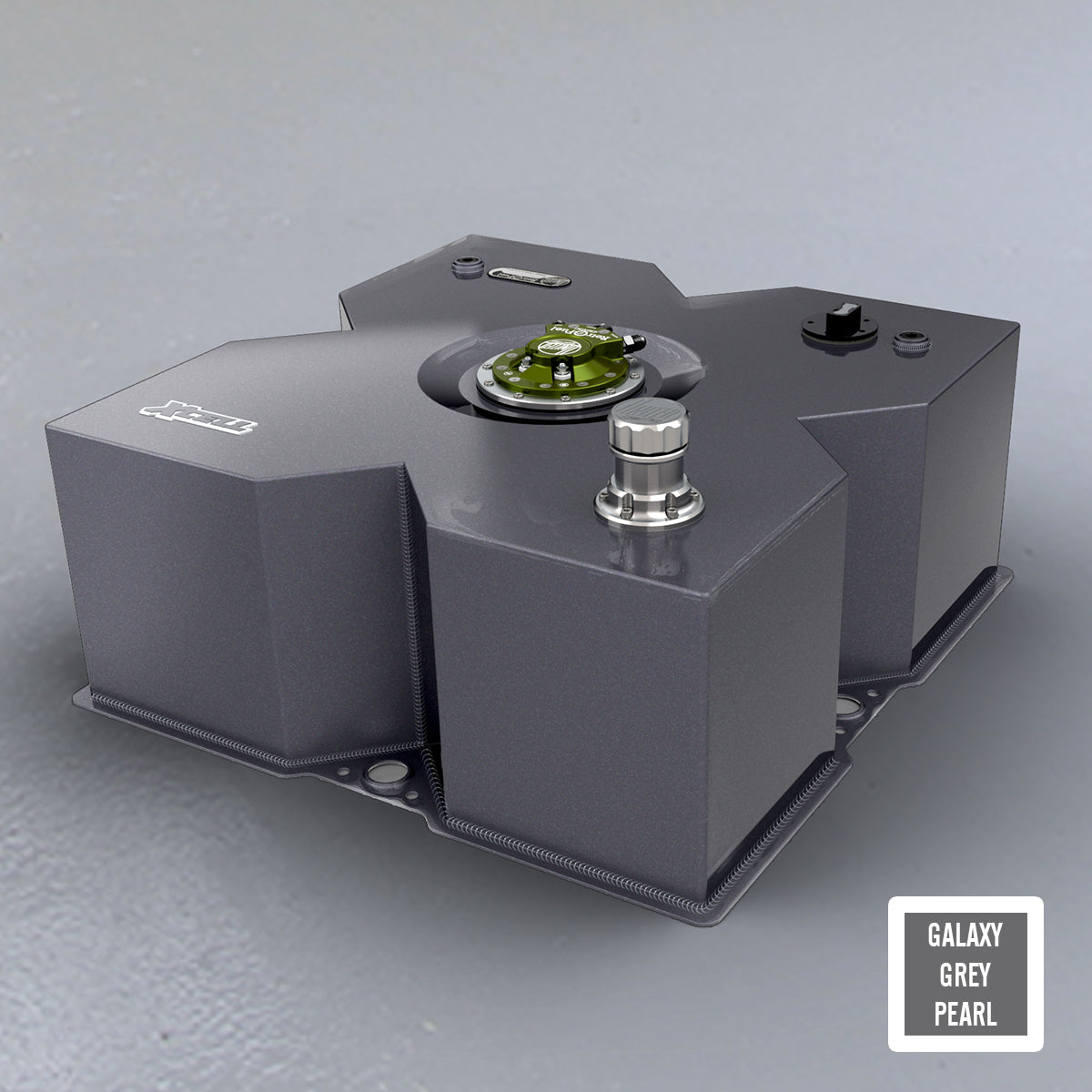

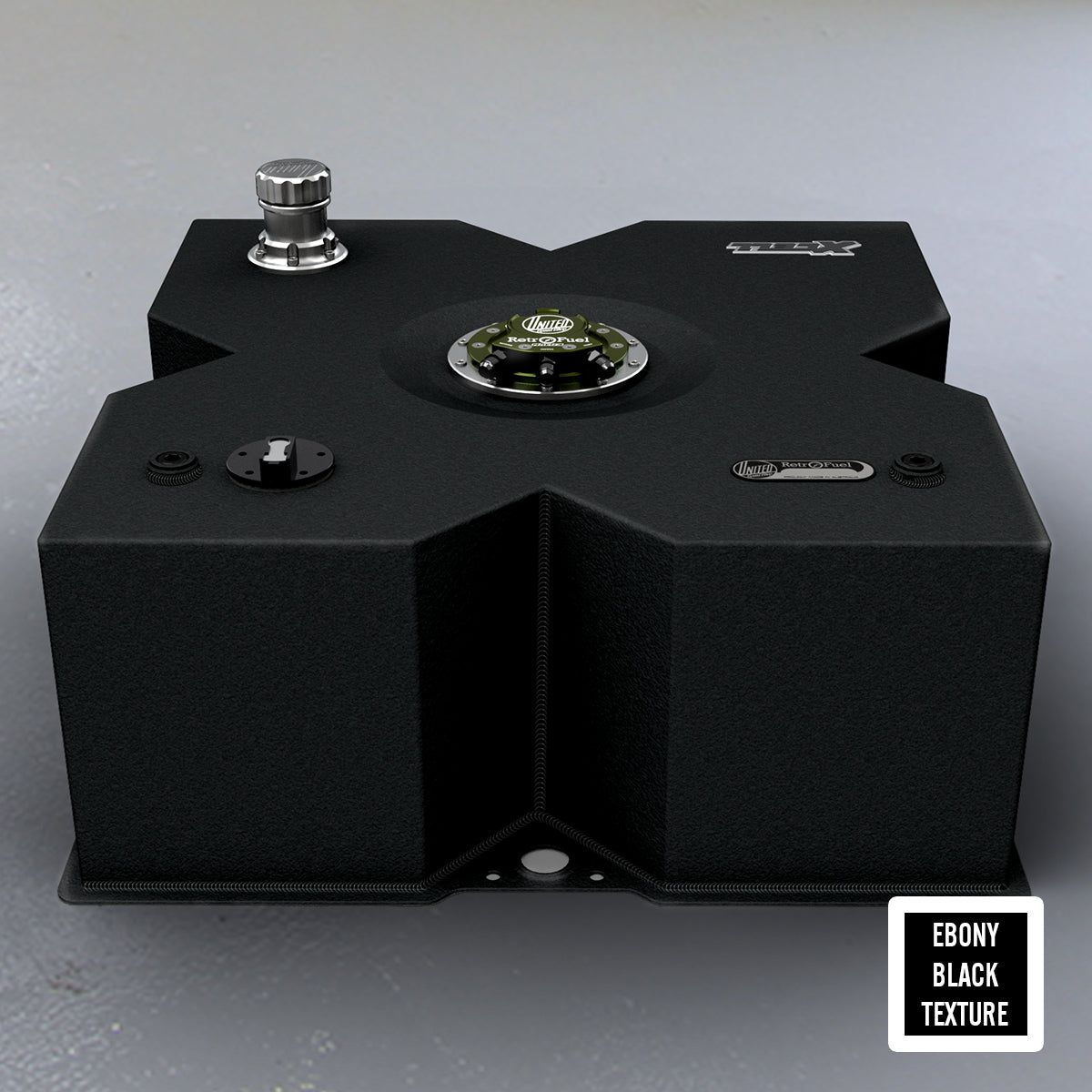

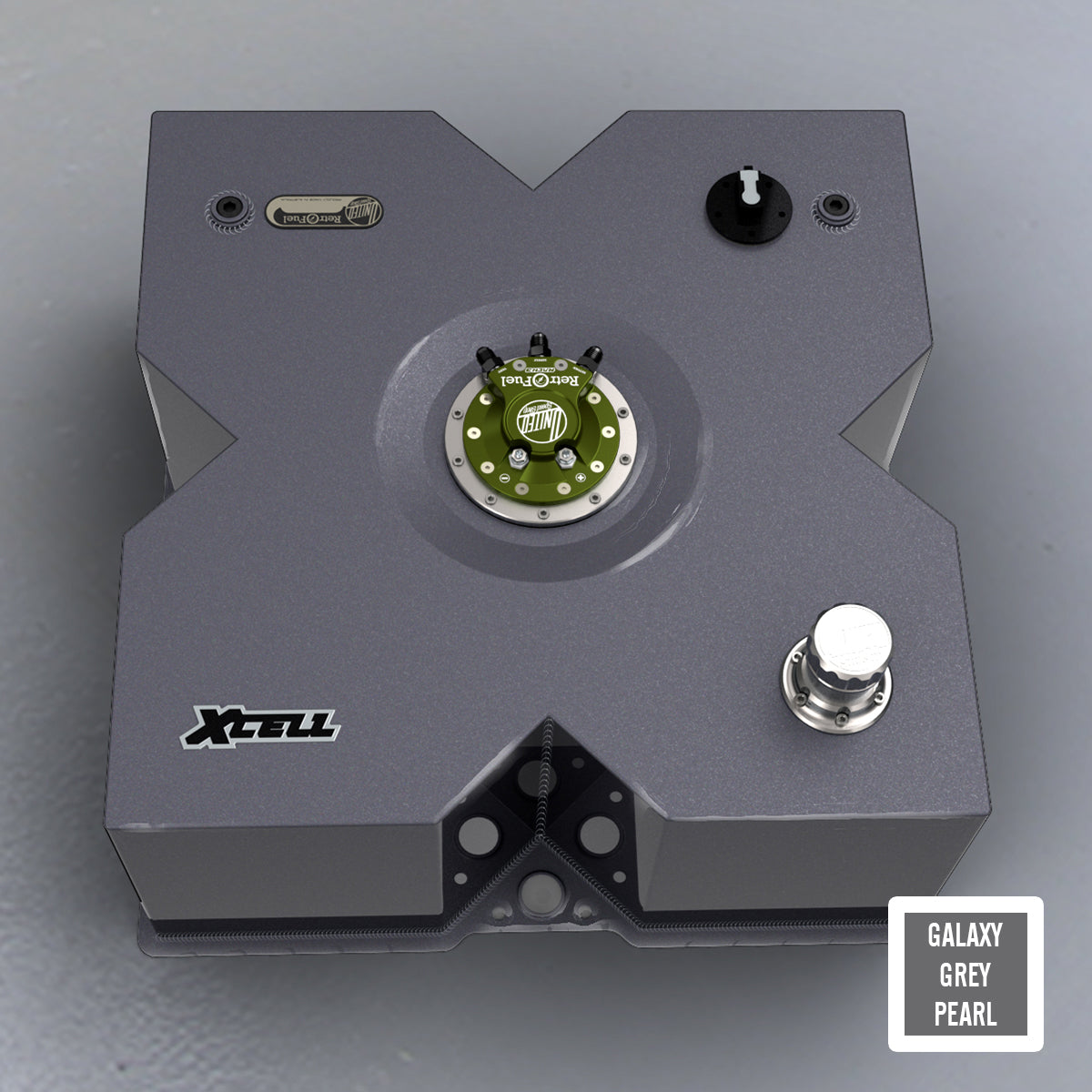

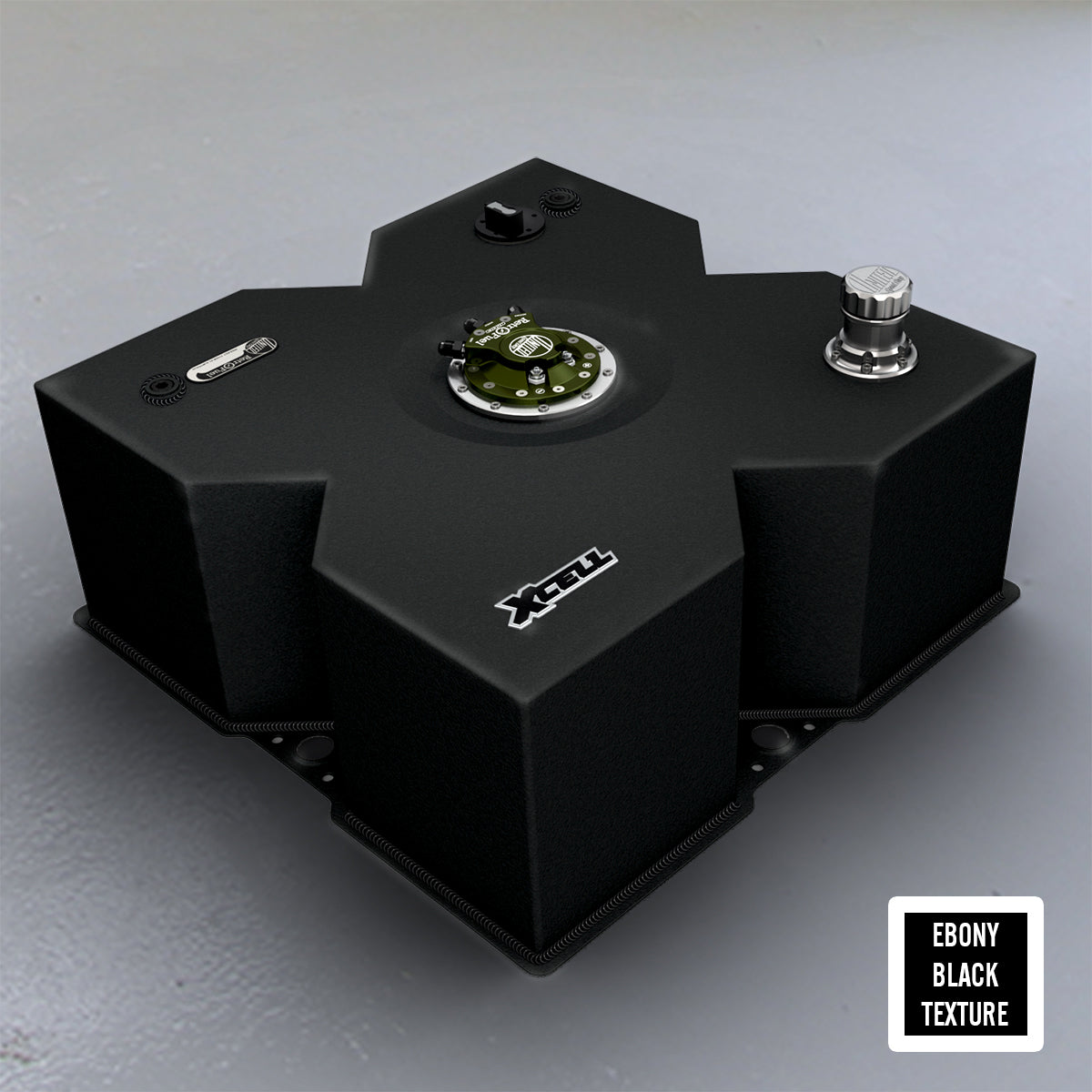

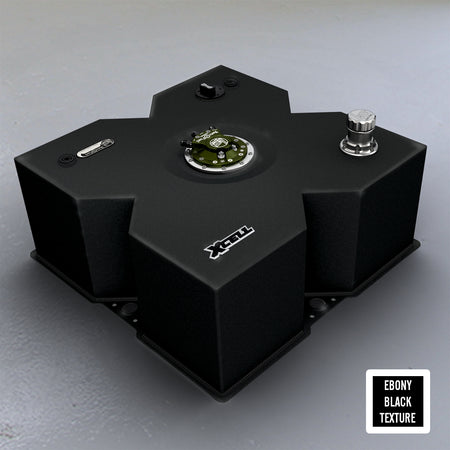

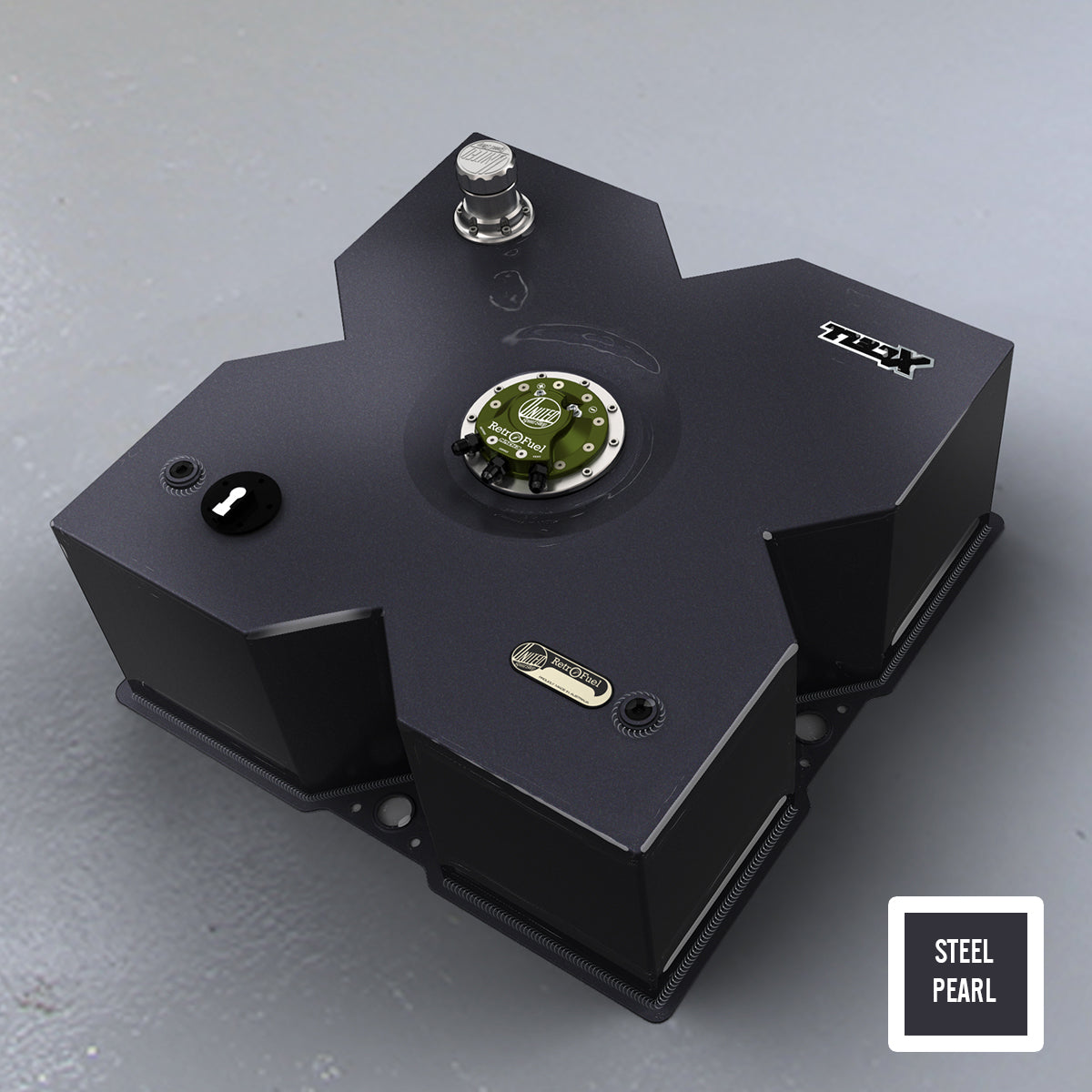

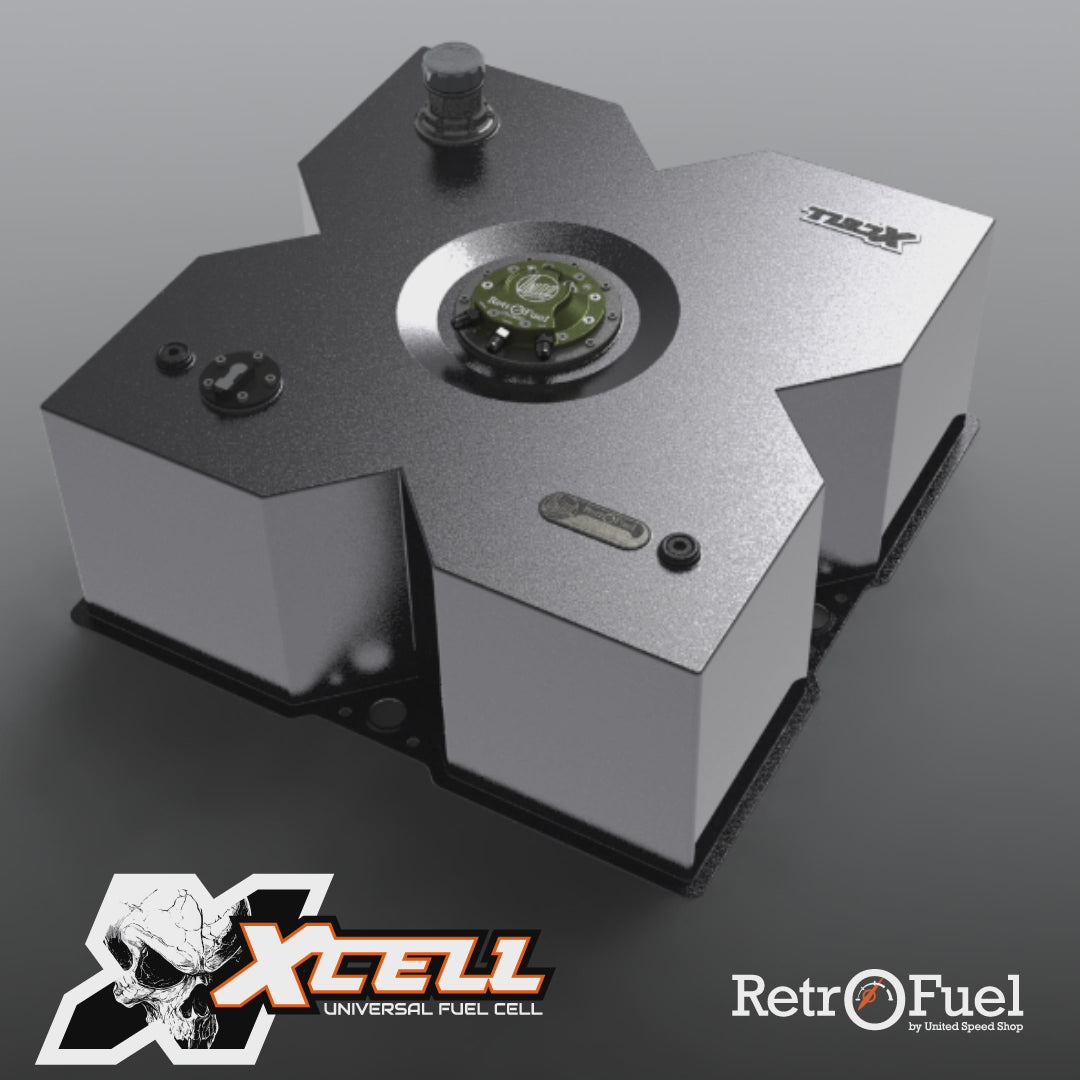

X-CELL 90L Universal Fuel Cell

$2,845.00
Fuel Pump
Sender OHM range
Description

The X-CELL Universal fuel cell is here! Perfect for high horsepower street machines, drag cars, burnout cars and offroad vehicles.

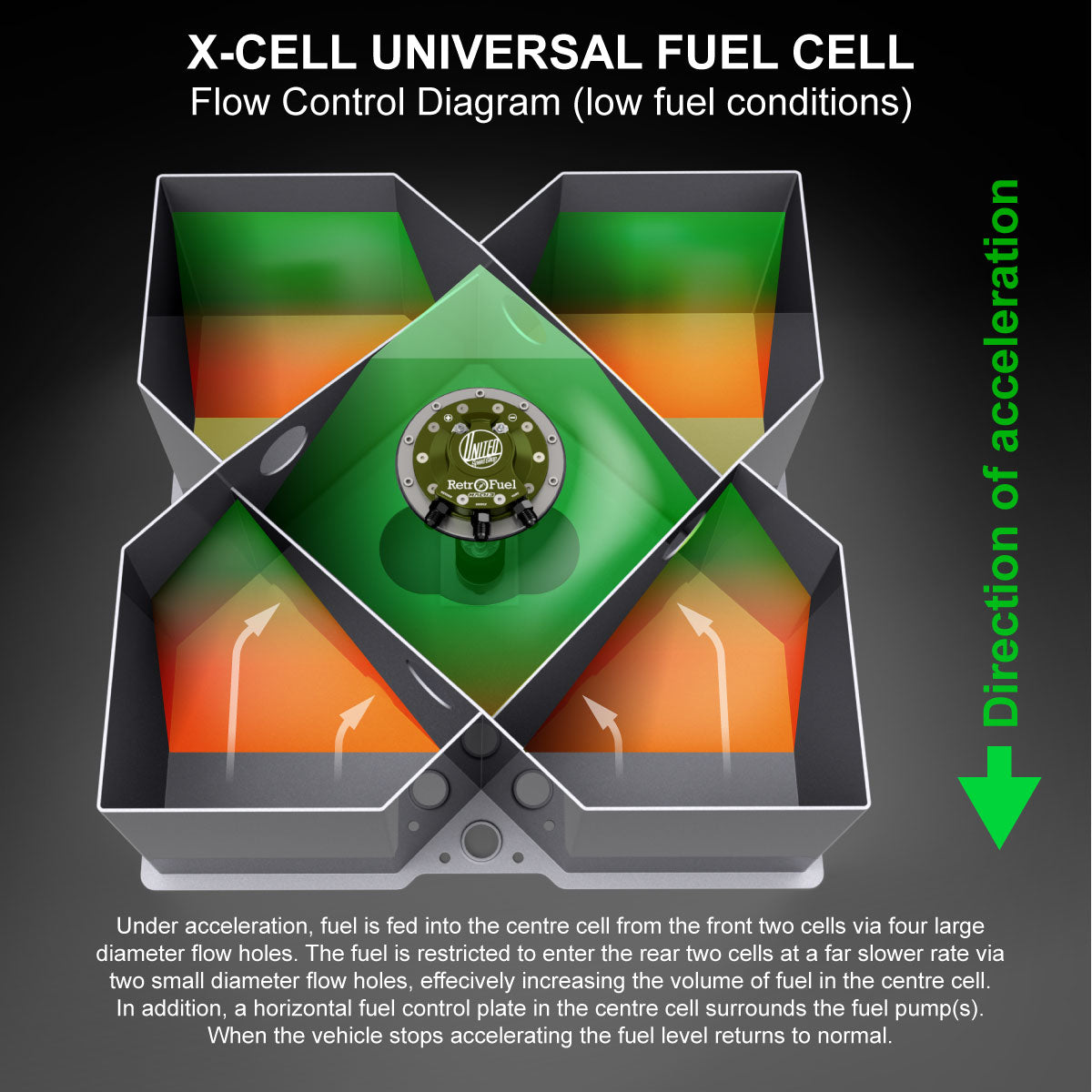

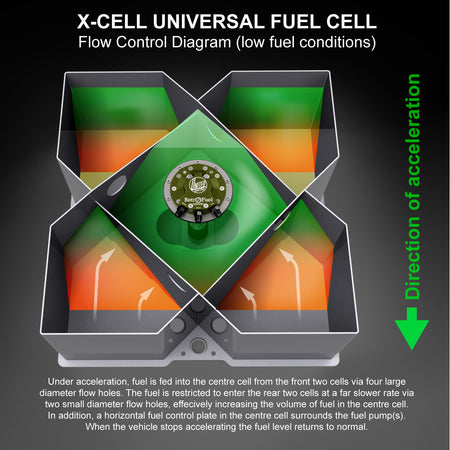

We figured the modern street machine deserves more than a square box - so we gave the fuel cell a redesign and a bit of a glow-up. Designed with both form and function in mind, it employs a unique X-shaped baffle and fuel control design to not only keep fuel around the pump pick up area under acceleration, but to actually force more fuel into that area under those conditions.

Can be supplied and fitted with any of our Mach Series pumps or built to utilise other hangers/pumps (contact us)

  • Internally baffled and sumped for fuel control

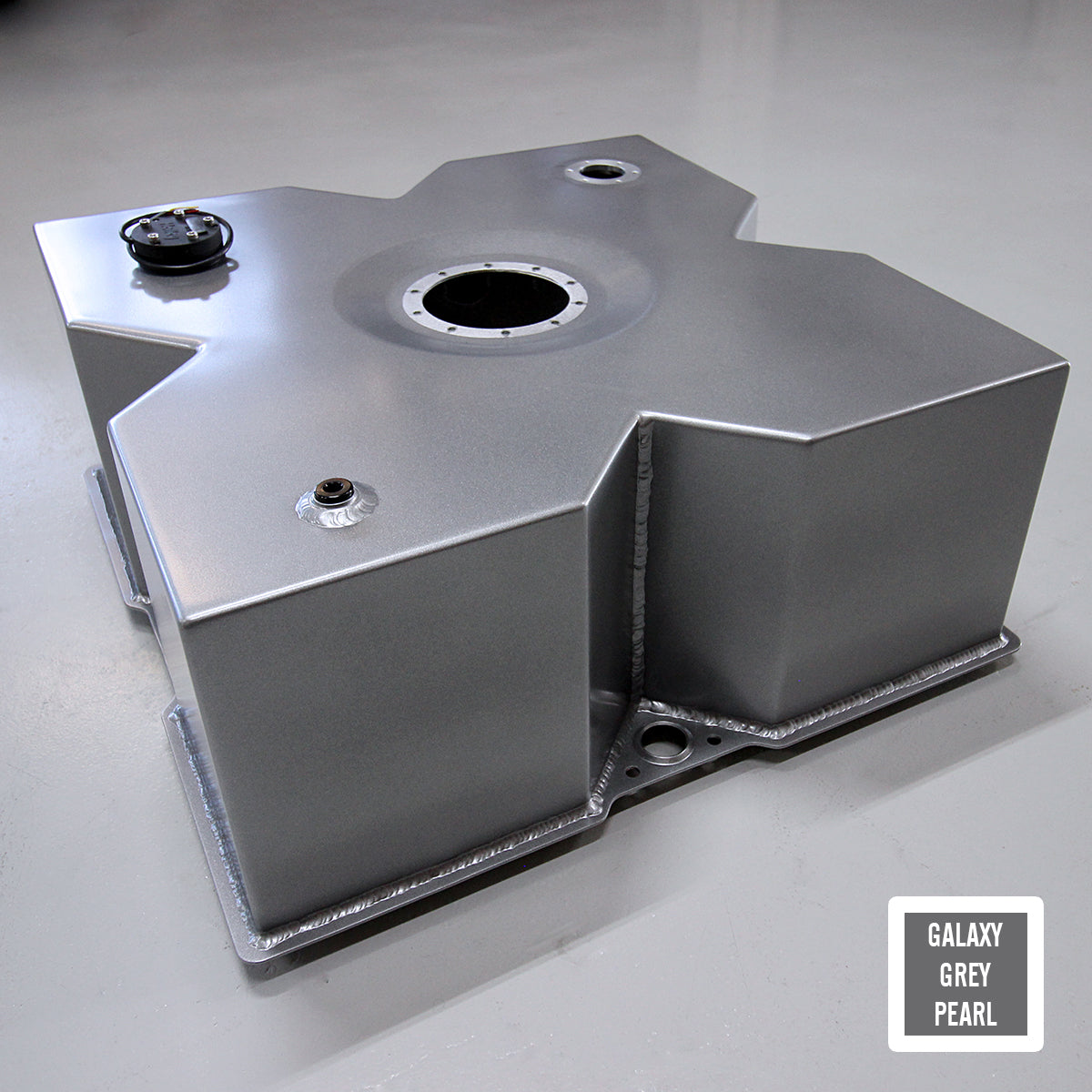

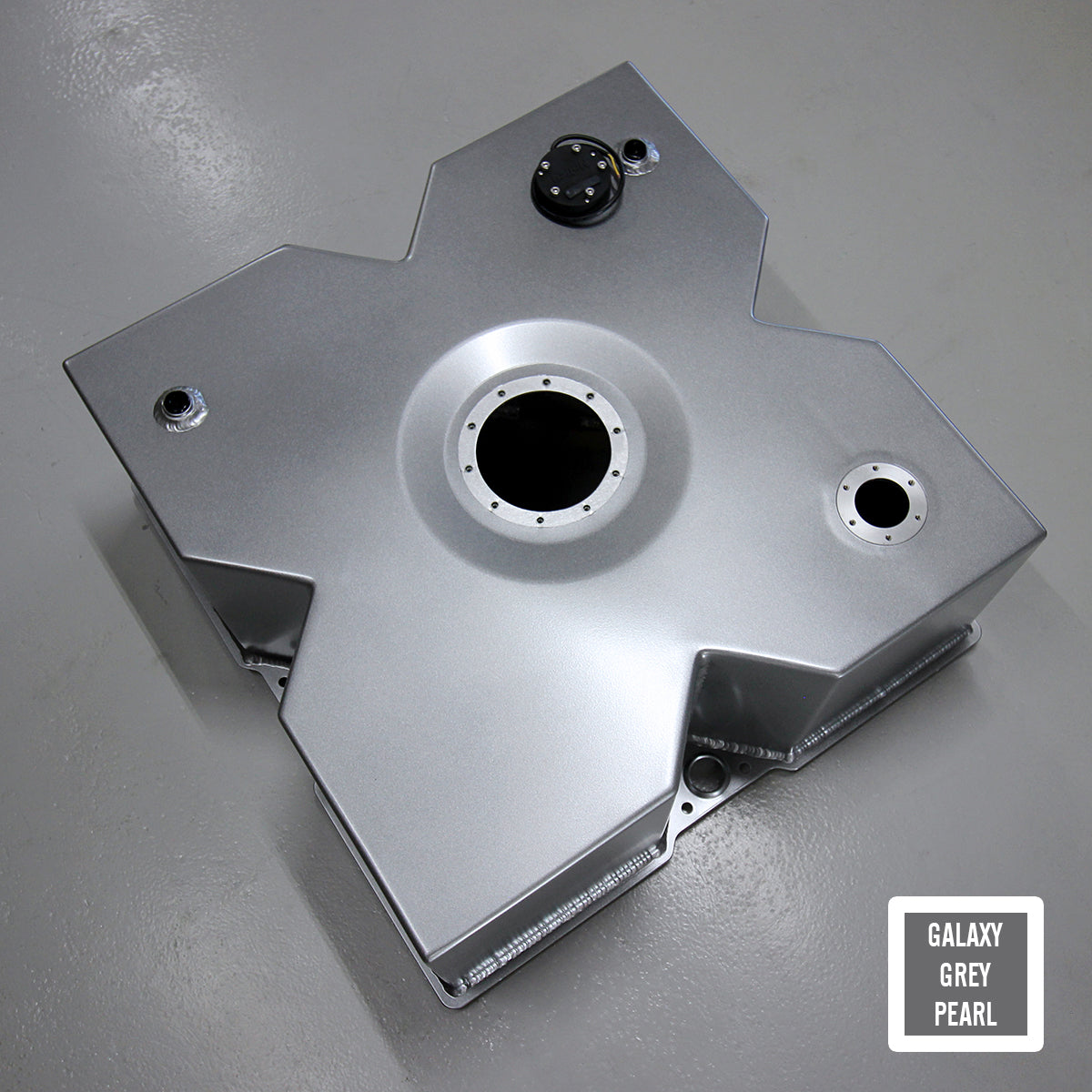

  • 3mm TIG welded aluminium construction
  • Universal bolt in fit
  • Suitable for EFI or carburetted applications
  • Designed to accept RetroFuel pumps plus others upon request
  • Complete with modern tube type sending unit (available in different ohm ranges)
  • Capacity: 90L

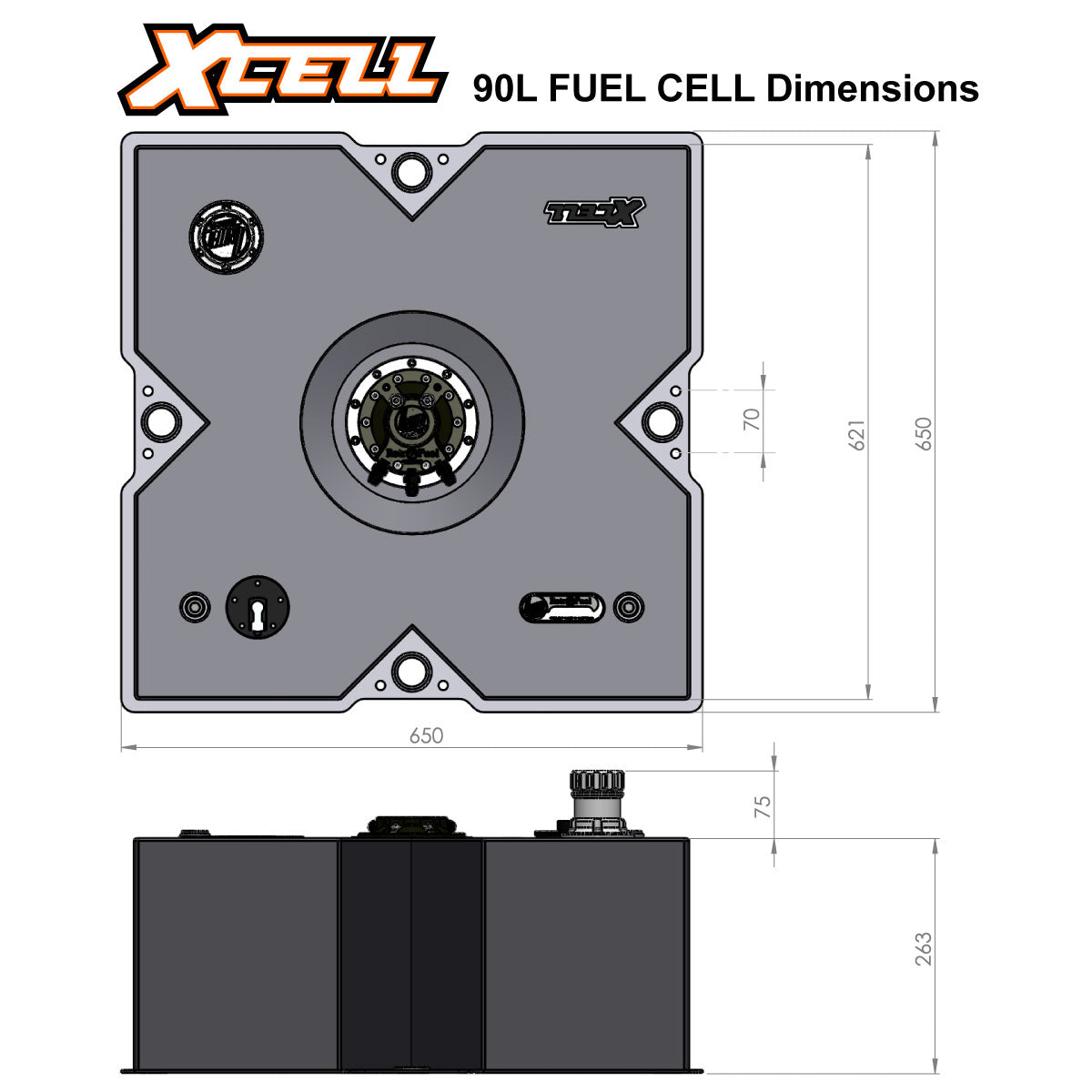

  • Dimensions: L: 650mm x W: 650mm x H: 263mm
  • 3 filler neck options (straight 2", 90 degree 2" or filler cap)

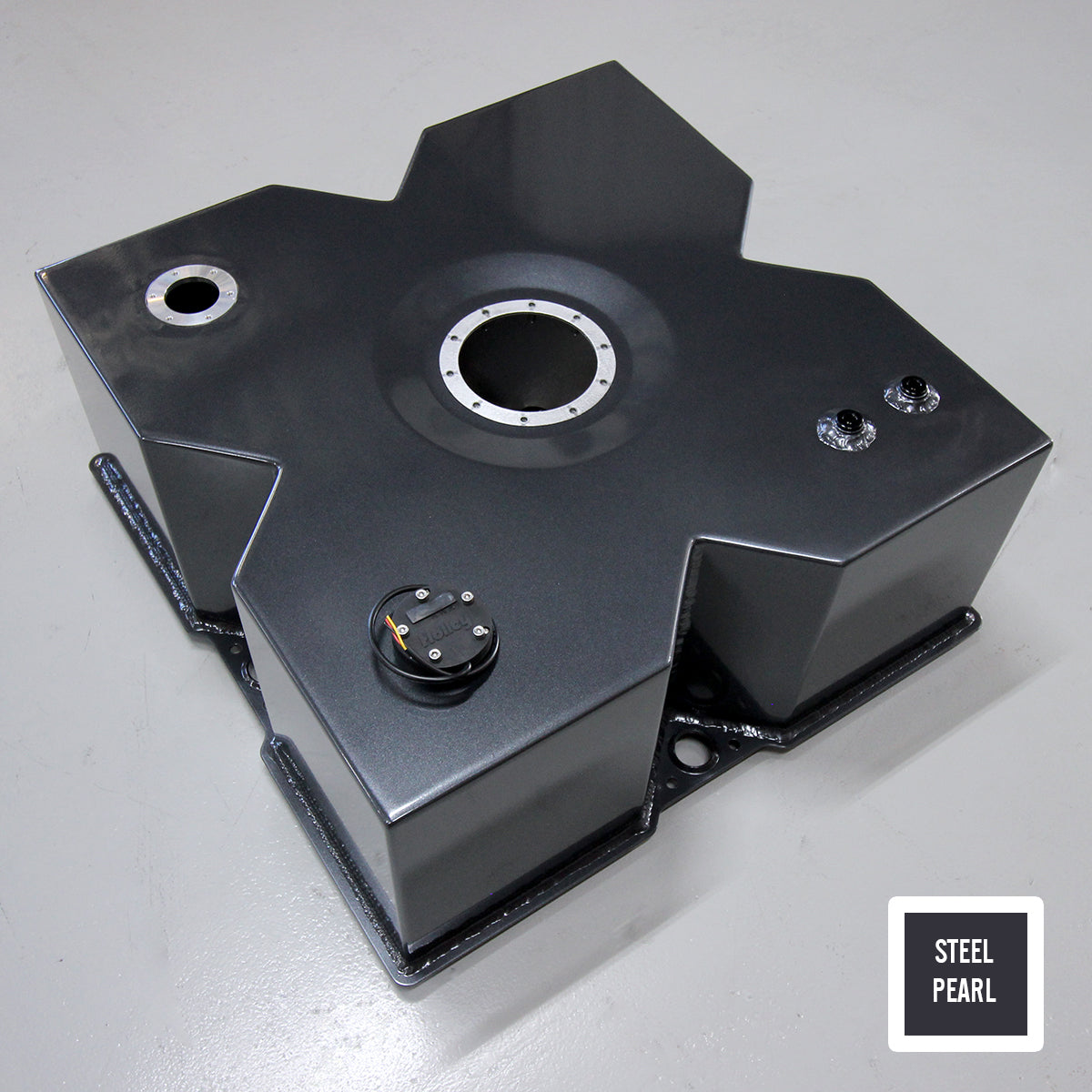

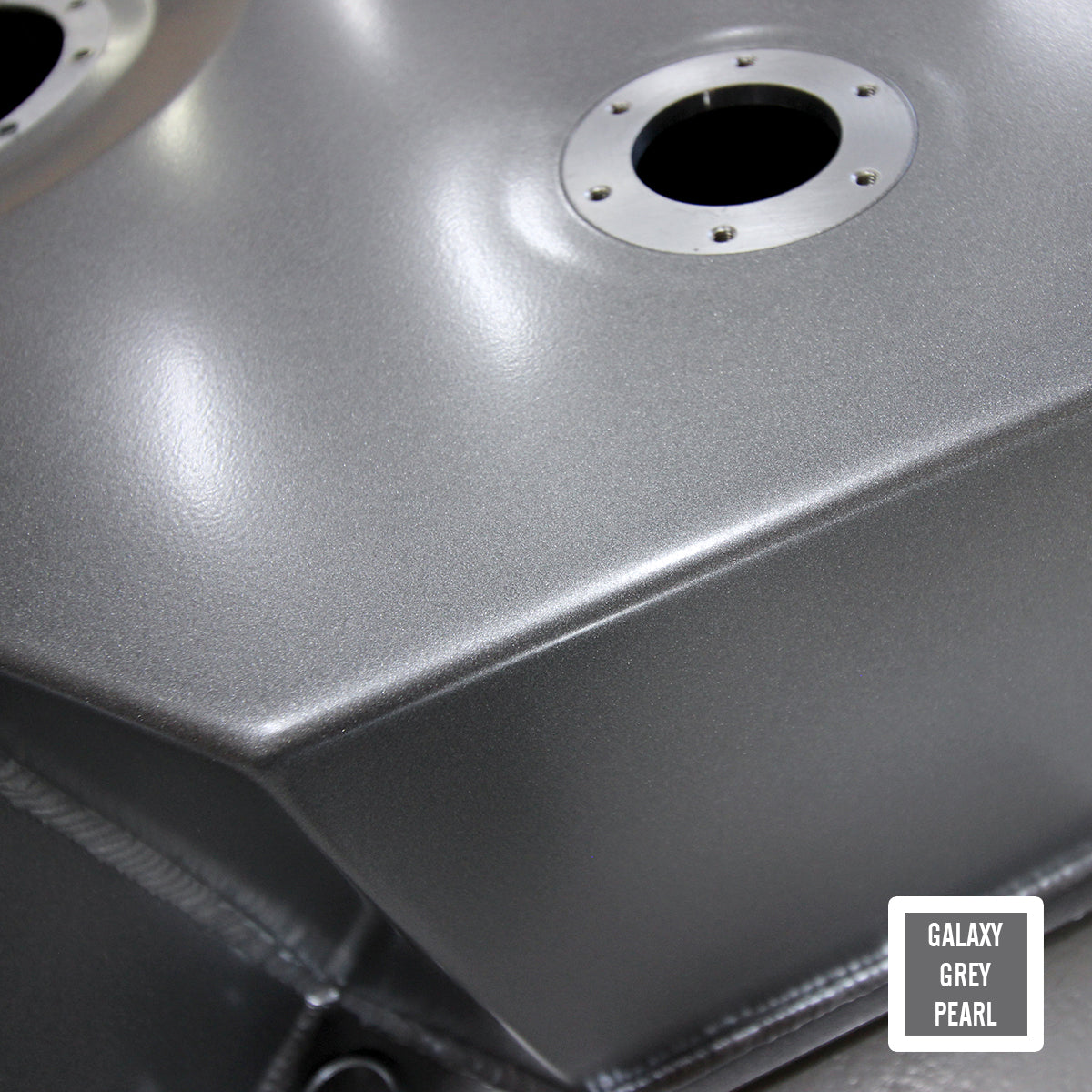

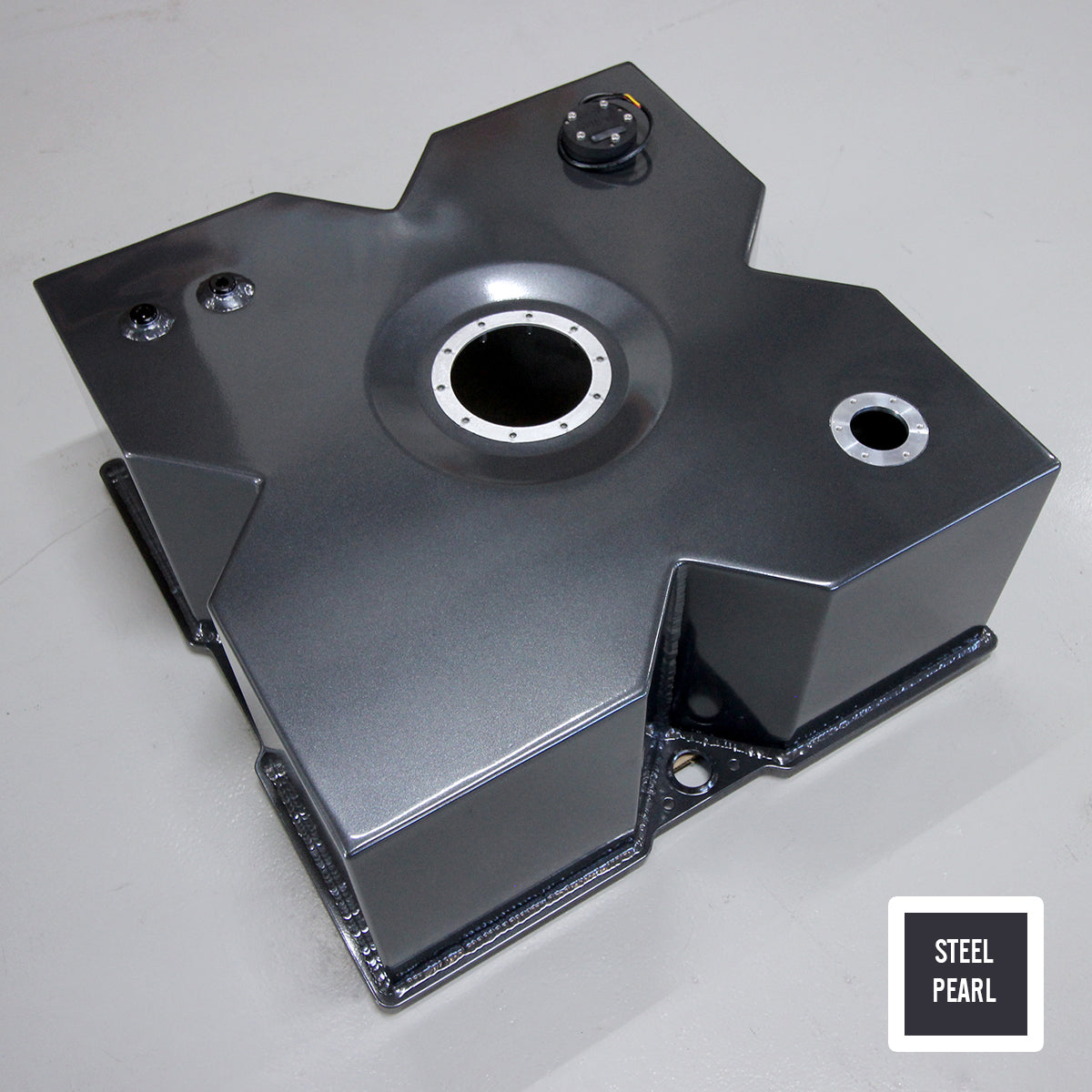

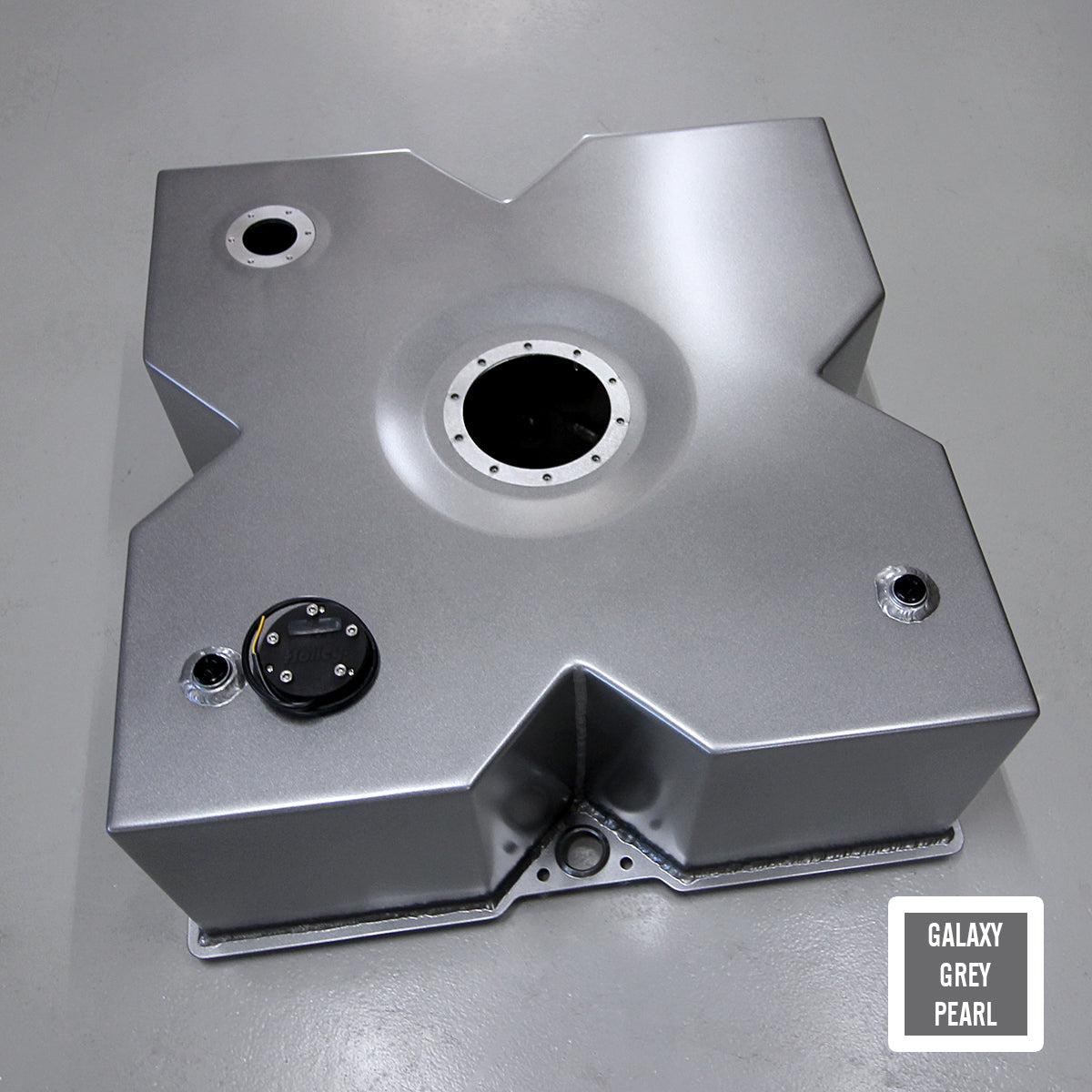

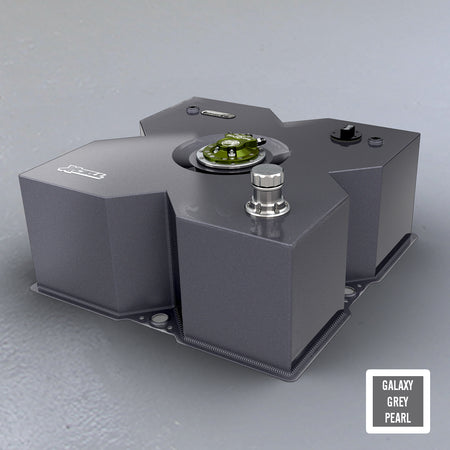

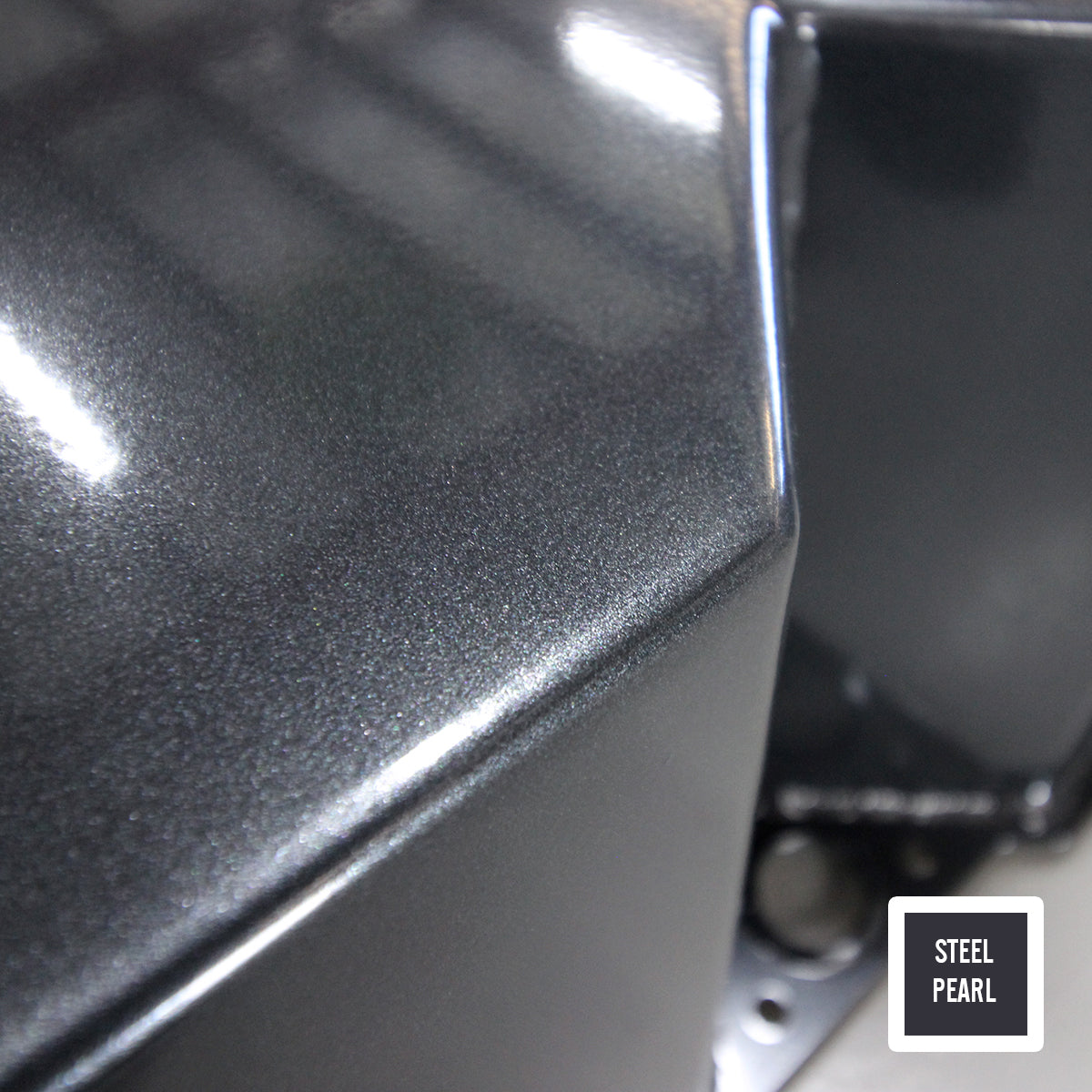

  • Powder coated as standard
  • 2 x -8 ORB inlets (block off plugs supplied)
  • 1 x -10 ORB outlet/drain (block off plugs supplied)
  • 100% Australian designed and built

Optional fuel pumps:

RetroFuel MACH 1 ($945)

  • Supports up to
    500 HP EFI – Naturally Aspirated

RetroFuel MACH 2 ($1045)

  • Supports up to
    650 HP EFI – Naturally Aspirated
    470 HP EFI – Forced Induction

RetroFuel MACH 3 ($1245)

  • Supports up to
    1100 HP EFI – Naturally Aspirated
    800 HP EFI – Forced Induction
    750 HP EFI – Naturally Aspirated (E85)
    550 HP EFI – Forced Induction (E85)

RetroFuel MACH 6 ($1545)

  • Supports up to
    2200 HP EFI – Naturally Aspirated
    1600 HP EFI – Forced Induction
    1500 HP EFI – Naturally Aspirated (E85)
    1100 HP EFI – Forced Induction (E85)

These pumps are also suitable for carburetted applications with the use of a return style regulator - see our fuel pump comparison chart here for supported power levels.

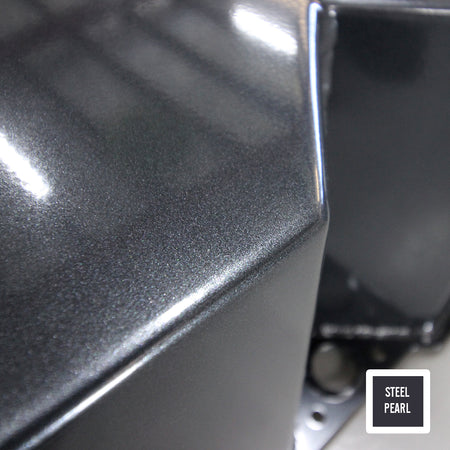

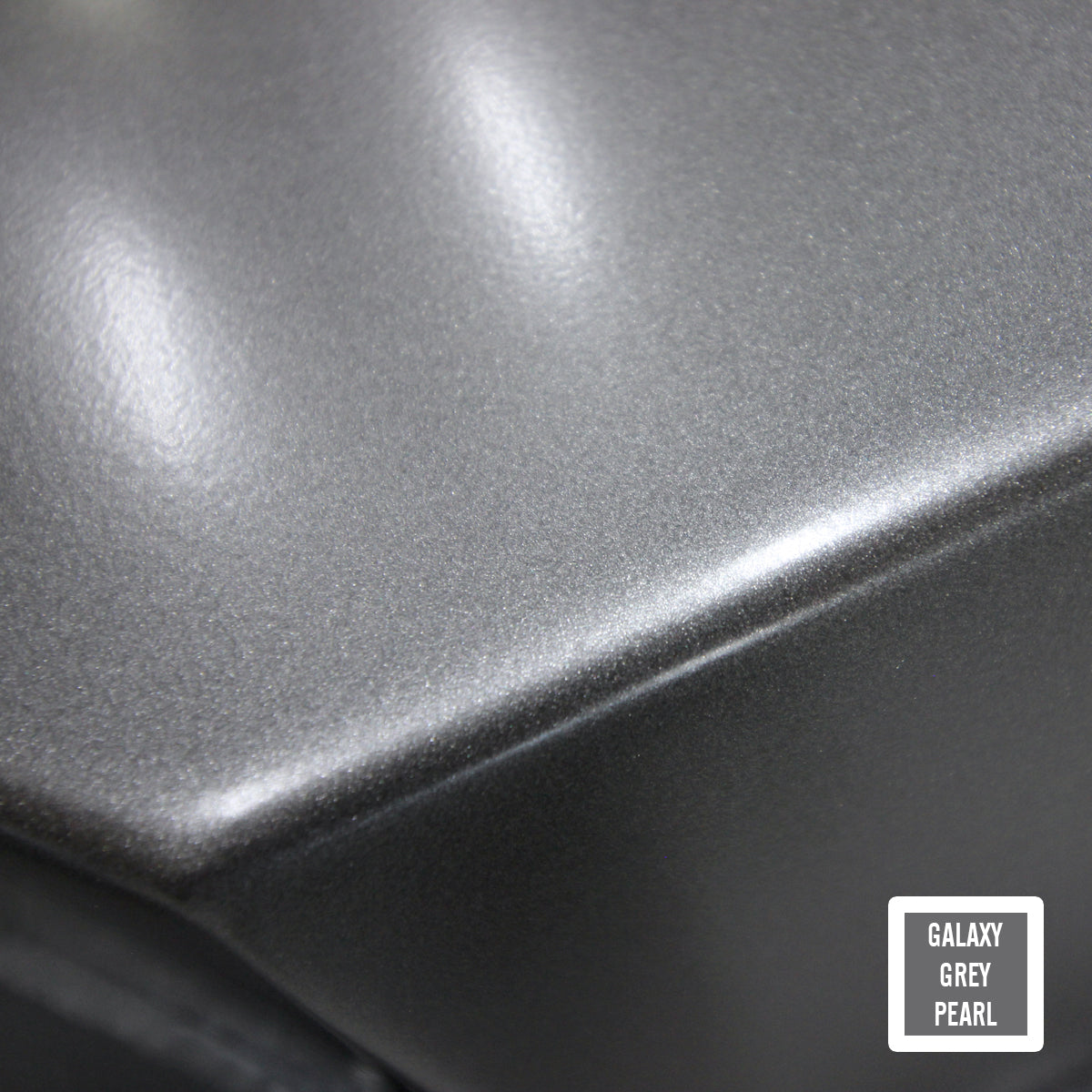

Custom colour powder coating is available on request.

We can still supply and fit most other types of pumps/hangers on request (EFI Hardware, Raceworks, Aeromotive, Commodore etc.) – contact us.

All tanks are currently made to order so please allow approx. 2 weeks for delivery.
