EJ-EH Holden EFI Ready Fuel Tank

Regular price $2,895.00
Sender OHM range
Fuel pump
Spare wheel cutout

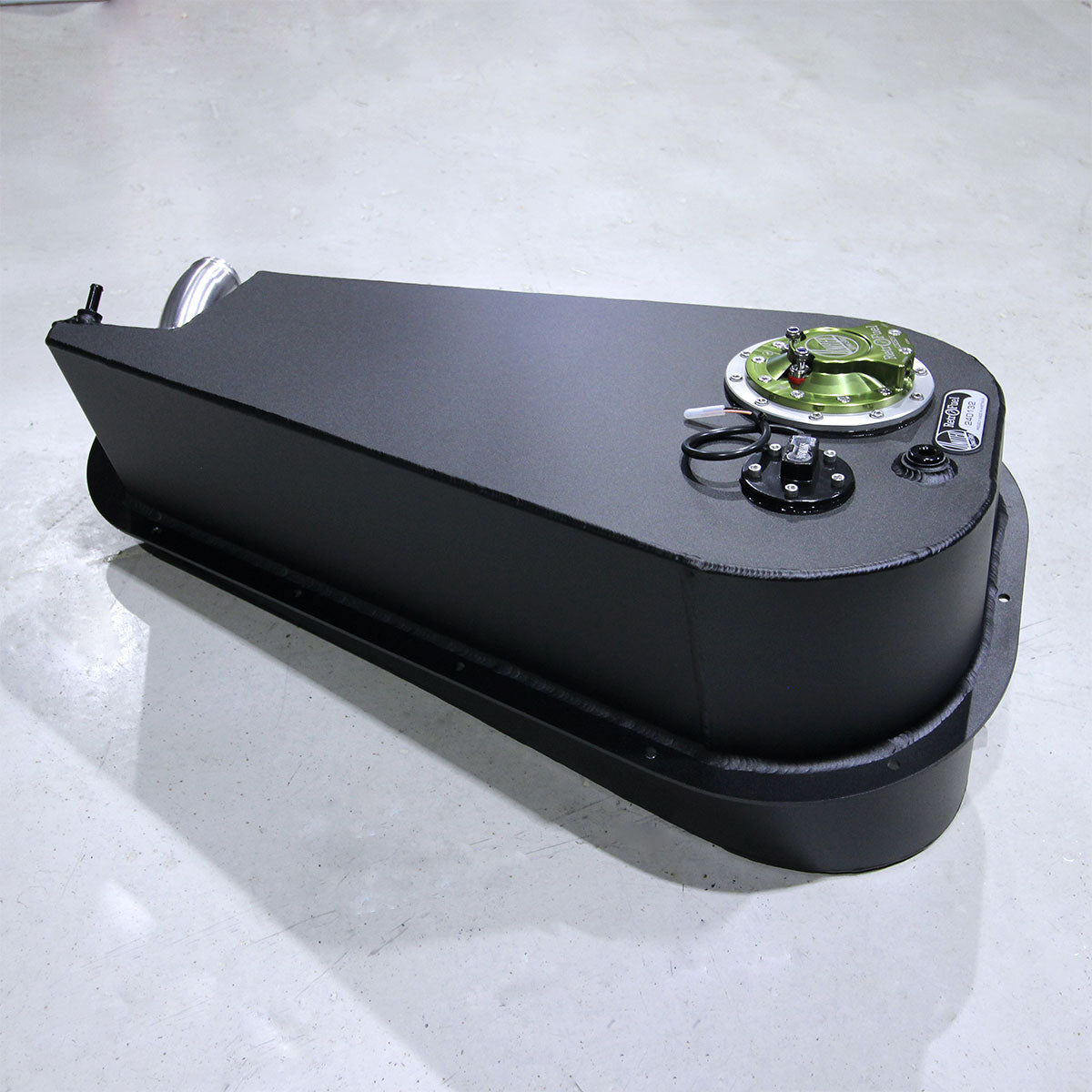

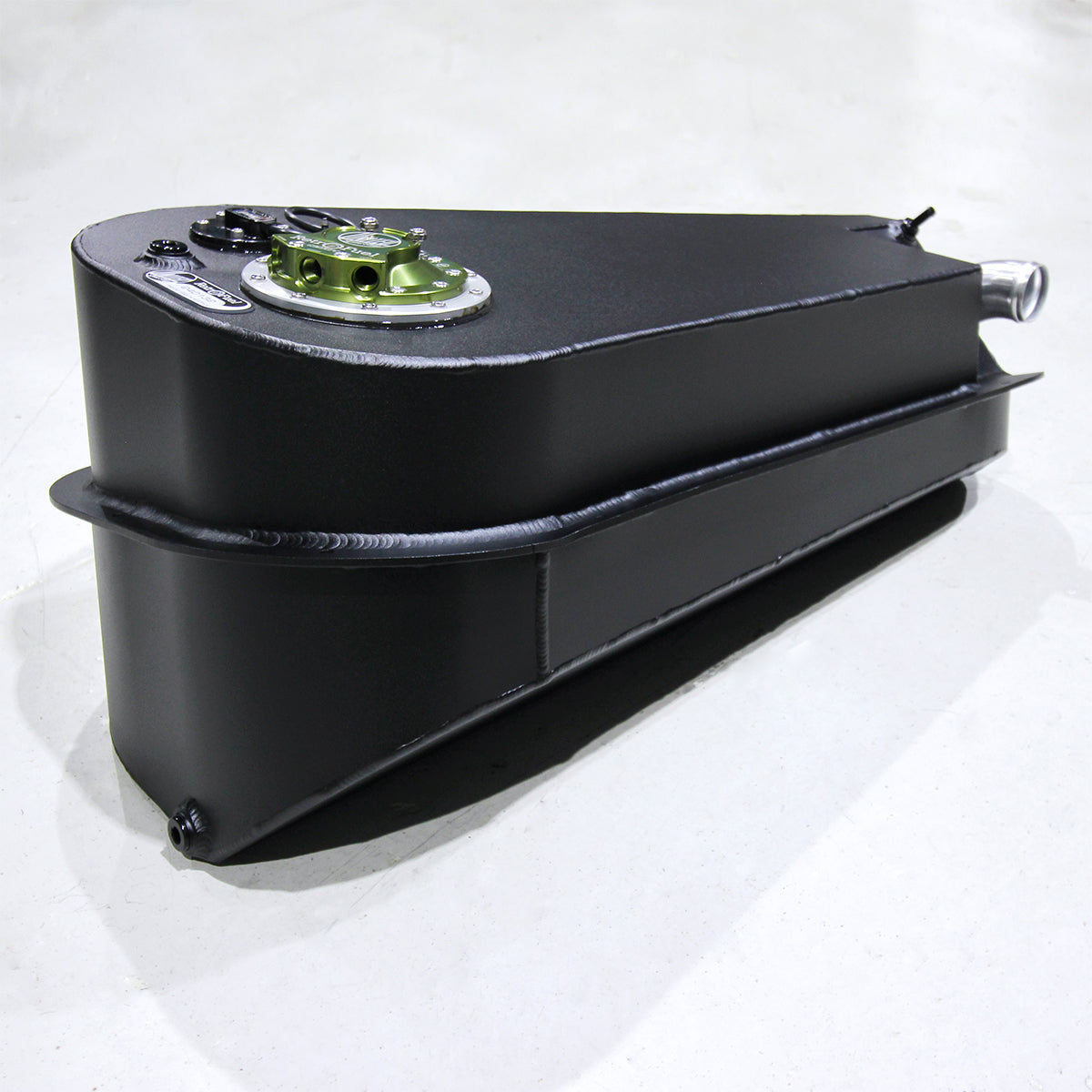

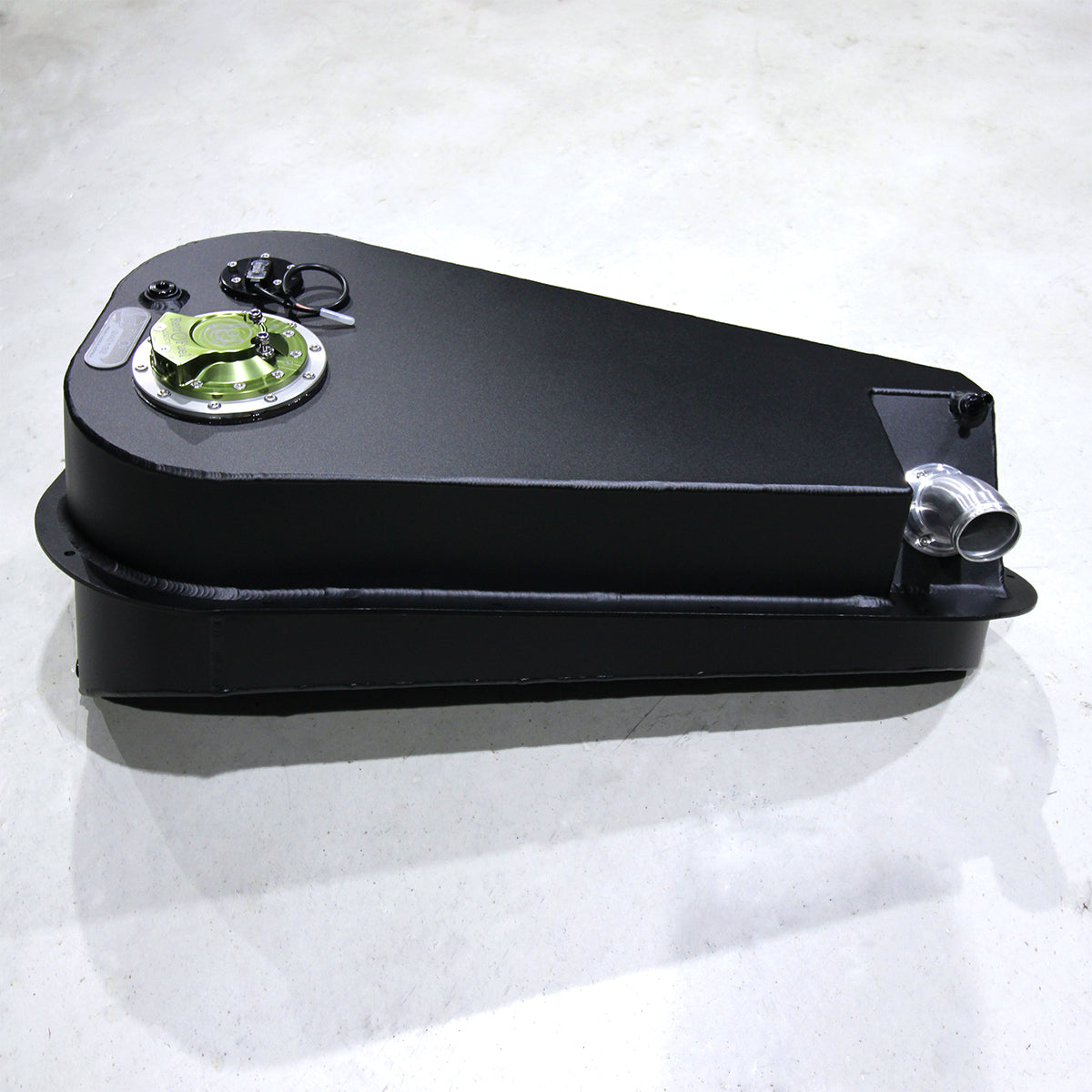

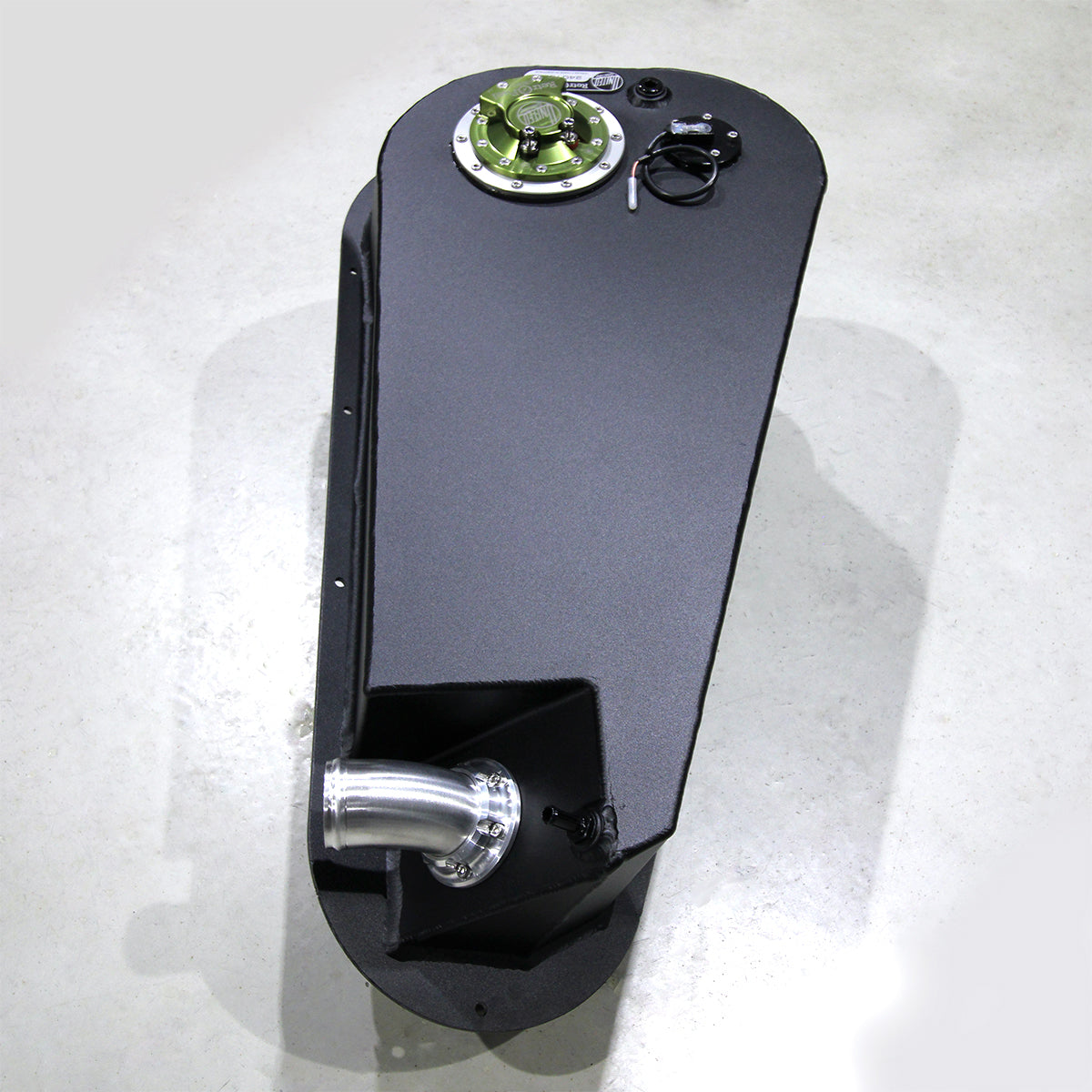

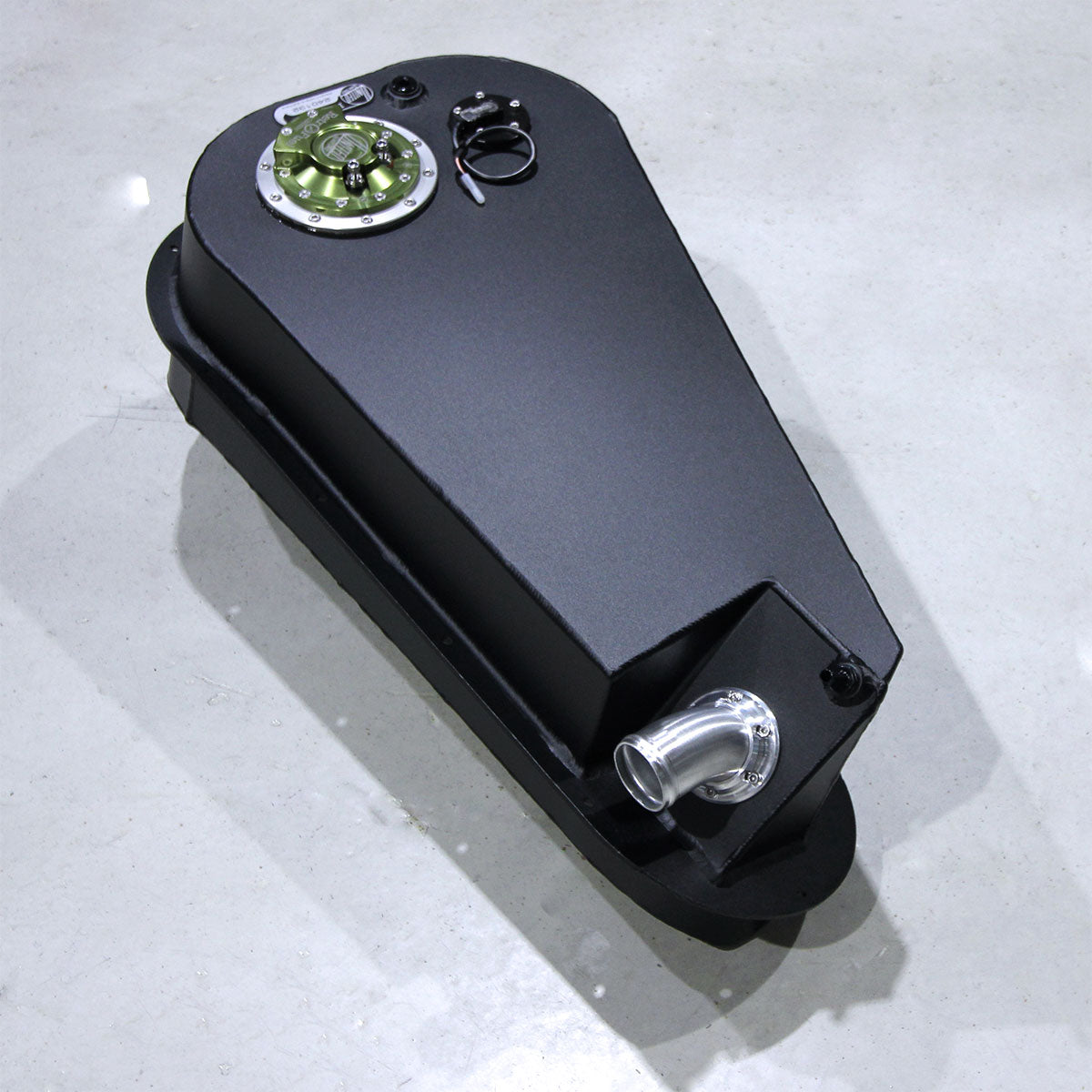

RetroFuel by United Speed Shop offer these direct replacement, bolt in (no modifications necessary) aluminium fuel tanks for EJ and EH Holden. They are EFI ready and also will work for carburetted applications. The tanks have a 56L capacity (51L with spare wheel provision). Up from 43L for the original, for a moderate increase in capacity while retaining a similar shape and aesthetic to the factory tank.

  • Internally baffled and sumped for fuel control
  • 3mm TIG welded aluminium construction
  • Direct bolt in fit
  • Suitable for EFI or carburetted applications
  • Designed to accept RetroFuel pumps plus others upon request
  • Complete with modern tube type sending unit (available in different ohm ranges)
  • Available with or without provision for a spare wheel/tyre.
  • Capacity: 56L (51L with spare wheel provision)

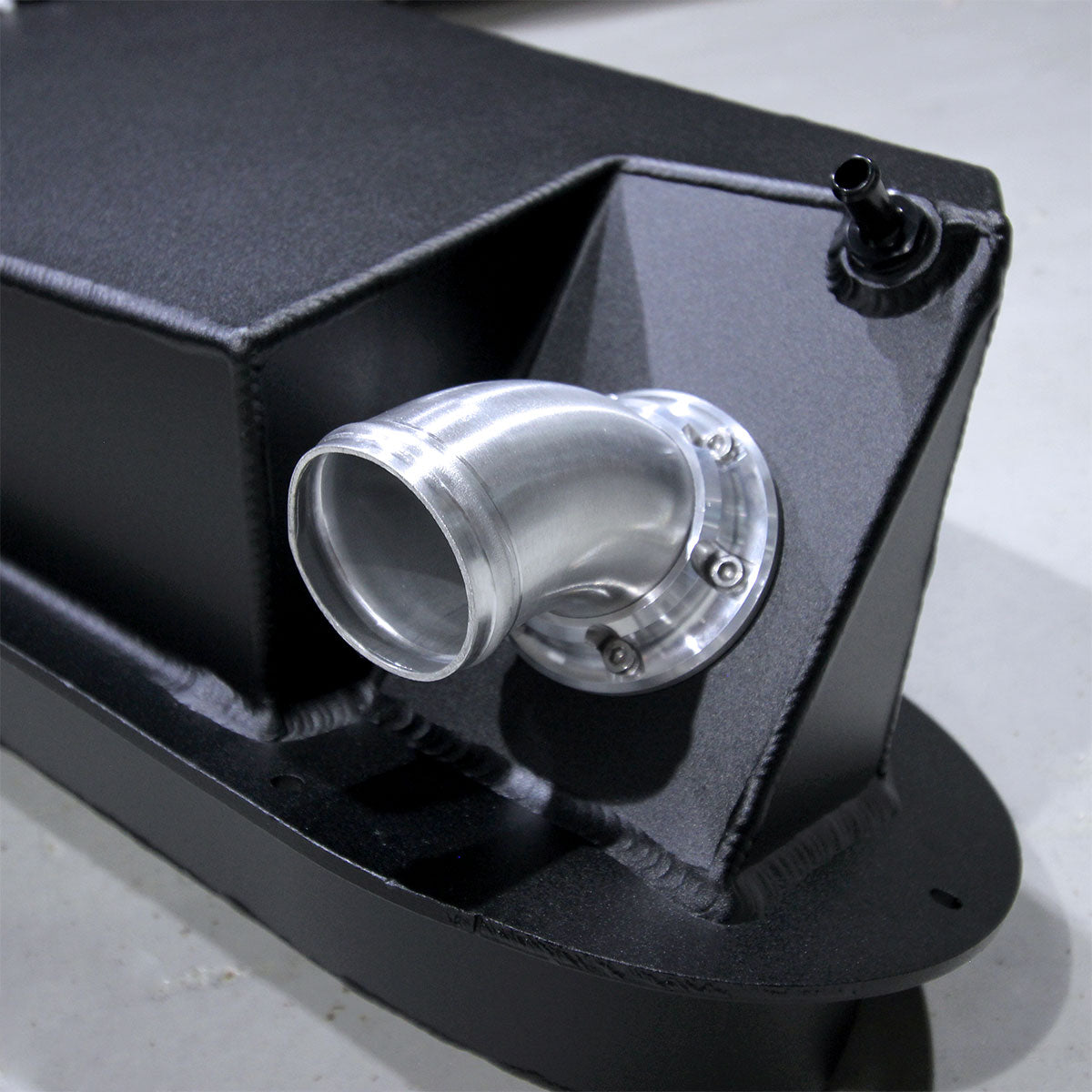

  • Billet fuel filler neck connects to existing factory filler
  • Powder coated as standard
  • 1 x -6 ORB inlets (block off plugs supplied)
  • 2 x -8 ORB inlets/outlets (block off plugs supplied)

Optional fuel pumps:

RetroFuel MACH 1 ($945)

  • Supports up to
    500 HP EFI – Naturally Aspirated

RetroFuel MACH 2 ($1045)

  • Supports up to
    650 HP EFI – Naturally Aspirated
    470 HP EFI – Forced Induction

RetroFuel MACH 3 ($1245)

  • Supports up to
    1100 HP EFI – Naturally Aspirated
    800 HP EFI – Forced Induction
    750 HP EFI – Naturally Aspirated (E85)
    550 HP EFI – Forced Induction (E85)

RetroFuel MACH 6 ($1545)

  • Supports up to
    2200 HP EFI – Naturally Aspirated
    1600 HP EFI – Forced Induction
    1500 HP EFI – Naturally Aspirated (E85)
    1100 HP EFI – Forced Induction (E85)

These pumps are also suitable for carburetted applications with the use of a return style regulator - see our fuel pump comparison chart here for supported power levels.

Custom colour powder coating is available on request.

We can still supply and fit Aeromotive or other types of pumps on request – contact us.

All tanks are currently made to order so please allow approx. 6 weeks for delivery
